Raspberry Pi Ribbon Cable
A Raspberry Pi flat cable has covered, whether you're using the older or recent Raspberry Pi version. You can do many things with Raspberry while having a good Raspberry Pi GPlO ribbon cable connection.
You can never be too cautious when manipulating the pins with theRaspberry Pi 4 GPlO ribbon cable! A simple mistake can destroy andburn your board in less than a second, so being alert when manipulating it is a must; always pay attention and double-check everything.
- Evershine
- Fujian, China
- 7-15days
- Information
Raspberry Pi Ribbon Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly
Raspberry Pi ribbon cable is usually used to connect the Pl socket of the Raspberry Pi electrically to a breadboard. The cable is of importance as its wires can be connected individually to almost any header pin on the Raspberry Pi board when torn. No matter the version of Raspberry Pi, as long as the header pin is available, it will work perfectly.
1.27MM, 2MM,2.54MM pitch connector
Grey/rainbow wires
LOW MOQ 50pcs accepted
The prototype is available, lead time: 1-3 days. Suitable for automatic crimping
Sample available

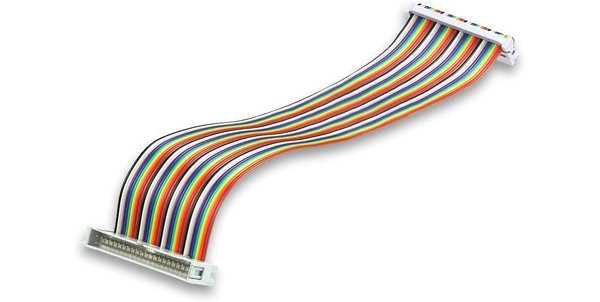

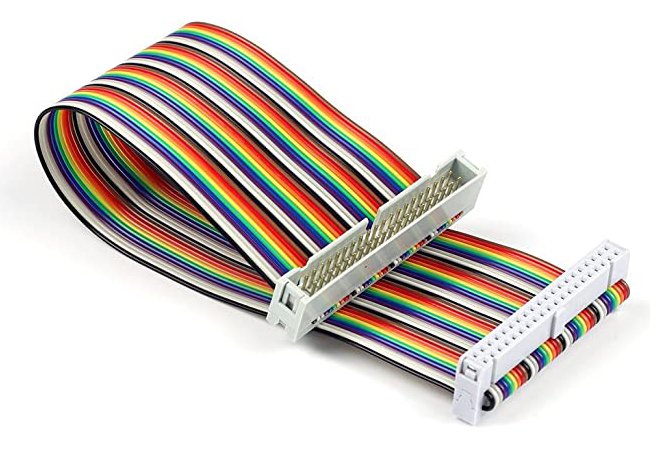

Rainbow flat cable: lDC 40-pin male to female ribbon cables kit flat GPlO cable
Length: about 20 cm/8 inch
Material: High-quality copper soft wire material for safe and durable use
Easy assembly: The cables can be separated to form an assembly wire to support non-standard odd-spaced headers to complete other tests
Using Raspberry Ribbon Cable
Over the recent years, the rise of the Raspberry Pi ribbon cable has enabled the Linux box to be largely known in the technology industry as the most reliable gadget for differentvideo games and media.
It also plays a vital role as a network gadget that comes at a good price. Sadl,y most people usually use the Pi GPlo cable without any knowledge of what the pins behind the gadgetare for.
Raspberry Pi Ribbon Cable Functions
Since this little device is capable of doing everything a desktop computer is expected to do, here are some of the things people of all ages have been enabled to explore by it
Entertainment (such as playing HD video and playing games, )
Electronics projects (home and engineering)
The Raspberry Pi has various versions of the board with a GPIO header, including a Raspberry Pi 40 pin cable. These headers contain pins that let the Pi do its magic, yetso many people don't know what they really are.
GPlO Meaning
The term GPlO is an abbreviation that stands for General Purpose Input/Output cables. These output and input pins have the main purpose of powering the Raspberry Pi. The cable is also responsible for the perfect transfer of sending and receiving the control signals. The GPlO pin ribbon cable signals can be of high or low adaptation, while others have special uses.
Connecting the GPlO Pins to a Breadboard
Depending on your Pi model, there is the Raspberry Pi 40 pin cable orRaspberry Pi 4 GPl0 cable on a GPlO header, and while using them, it's most suitable to use a breadboard.
Then GPlO board extension aids in connecting the GPlo header by using a ribbon cable which places the cable's pin on a direct contact with in the breadboard using a clear labeling approach.

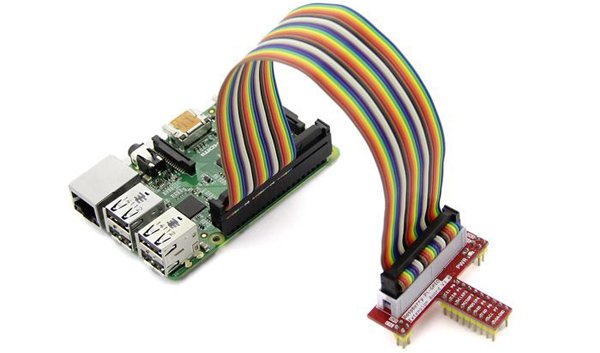

Breadboard Connection Using Male to Female Raspberry Pi Ribbon Cable
Using a GPlO ribbon cable for Raspberry Pi 4 establishes a great connection between the Raspberry Pi socket and a headboard. One end of the cable fitted nicely to the GPlO, while the other end of the cable was attached to the breadboard.
The General-purpose input/output (GPlO) ribbon cable extends theRaspberry Pi 40-pin cable port and has a normal length of 20 cm and 2.54 mm (0.1-inch) for its pin pitch.
A Raspberry Pi flat cable has been covered, whether you're using the older or the recent Raspberry Pi version. You can do many things with Raspberry while having a good Raspberry Pi GPlO ribbon cable connection.
You can never be too cautious when manipulating the pins with the Raspberry Pi 4 GPlO ribbon cable! A simple mistake can destroy and burn your board in less than a second, so being alert when manipulating it is a must; always pay attention and double-check everything.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
