The ribbon cable is made of 28 AWG (7/36) tinned copper. Each conductor is first extruded with SR-PVC, then all wires are pulled out in parallel and extruded with transparent PVC. No lamination tapes that can impede lDC termination are used.

The color codes for this cable are brown, red, orange, yellow, green, blue, purple, gray, white, black, and repeat.

Rainbow Ribbon Cable Features

Individually color-coded conductors for easy identification.

Complete extruded construction

No lamination tapes to prevent termination

Zip construction

Symmetrically round conductors improve lDC termination

Meet all the requirements of high-temperature applications.

Environmentally friendly wire

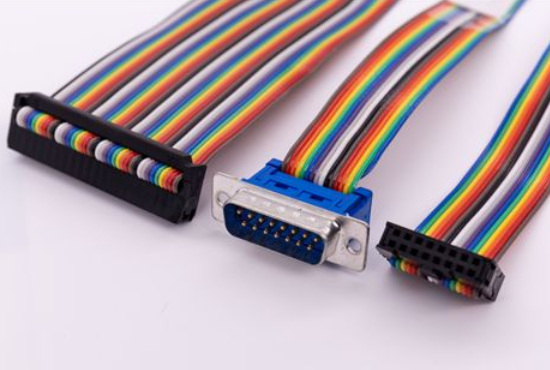

Various types of connectors like the lDC connector, D-SUB header, etc.

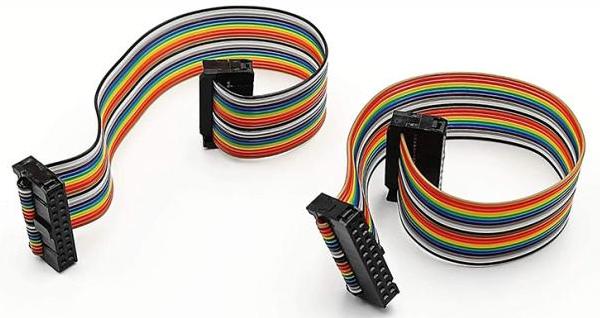

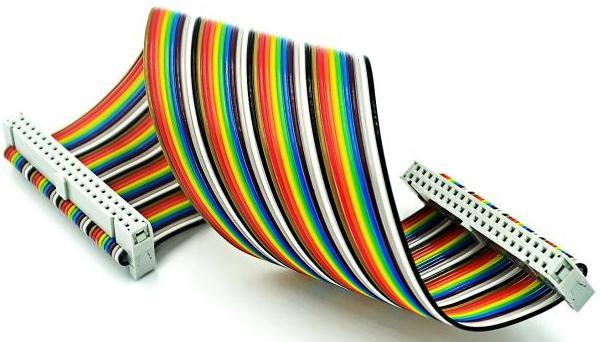

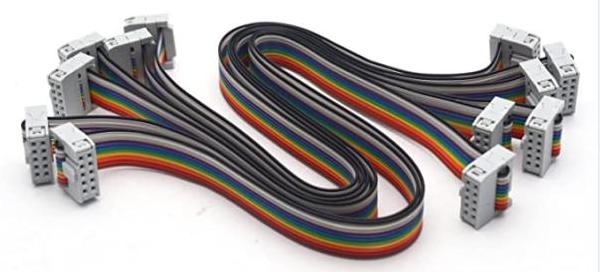

Rainbow Ribbon Cable Assembly Guide

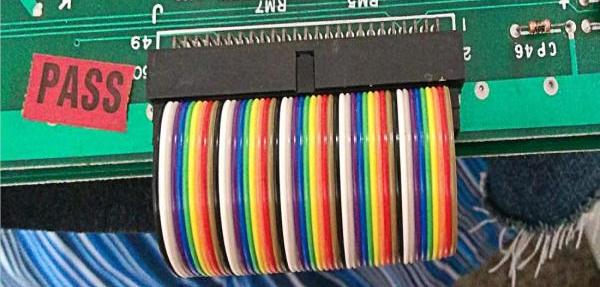

Rainbow ribbon cable assemblies have an important role in applications. The rainbow termarises due to the assembly's color-coding, which utilizes different colors. This assembly is made up of multiple wires with an lDC connector termination. The cable's flexible and fat nature can easily be routed even in confined spaces, making them a better choice, especially where space is limited.

What are the specifications of a rainbow ribbon wire?

Rainbow flat ribbon cables are normally specified through two values. This includes the conductor's number and spacing within an assembly. The pitch or spacing existsat various distances, including the 0.156, 0.100, 0.050, and lmm pitch. You can also get customized spacing when needed.

The conductor's number within the flat rainbow ribbon cable assembly needs to match with the position number that the connector accommodates for better efficiency and to meet the set standards. However, due to the standardized nature of the connector's way, the assembly is therefore restricted to certain positions, including4,6,8,10,14, and so on.

For better insulation, the assembly is made up of PVC. However, you can also choose to work with Olefin and Teflon materials depending on your application.

The multicolor ribbon cable is normally color-coded using different colors for better and easy termination. The color marking makes it possible to better align different pins within the connector, lt also reduces reversed connection risks. Generally, rainbow ribbon cable assemblies will feature a contrasting color on one edge, acting as the remainder of the assembly. The color of this edge mark, in some cases, might correspond with the cable's pitch. A 0.050 mm pitch will use a red edge mark that signifies the conductor being terminated.

What are the advantages of flat rainbow ribbon cables?

The main advantage that comes with this rainbow flat ribbon cable is the ease of termination. The assembly's controlled, and fixed pitch makes it easy for masterminding by using an lDC connector.

What are the applications of rainbow color ribbon cables?

Rainbow ribbon cable assemblies have become the new norm in almost every electrical application. This is due to the fact that they can be easily used even in areas where space is limited. Additionally, the materials used in a rainbow ribbon assembly have met all the requirements of high-temperature applications being used in hostile environments. This assembly is also a cost-effective option for your application compared with other assemblies -A reason why rainbow cable assemblies should be your first choice.

Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.

The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.

Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.

What is Cable Harness?

Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.

These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space.  Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.

What is the Wire Harness Assembly Process?

1. Wire Preparation. Cut the wires to the required lengths based on the design specifications.

2. .Crimping or Soldering.

3. Terminal Assembly.

4. Harness Routing and Bundling.

5. Testing and Inspection.

6. Protective Covering

7. .Labeling and Marking.

8. Final Quality Check and Packaging.

Where are wiring harnesses used?

Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
