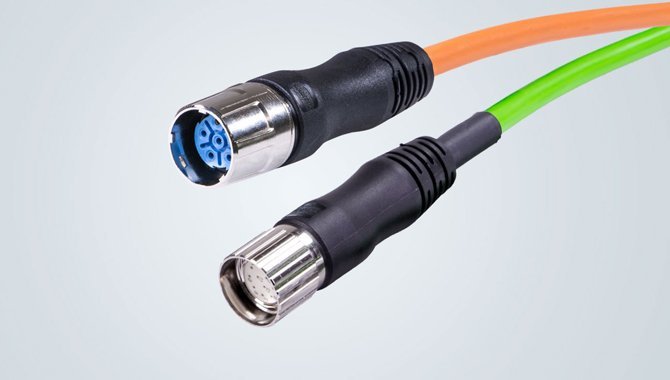

M23 Cable Assembly

M23 Cable Assembly

OEM ODM wiring Harness Factory

Customized Male to Female Wire Harness

Terminal wire 1.25 air docking Cable Harness

Terminal Wire Harness Kit manufacturer

Custom Cable Assembly

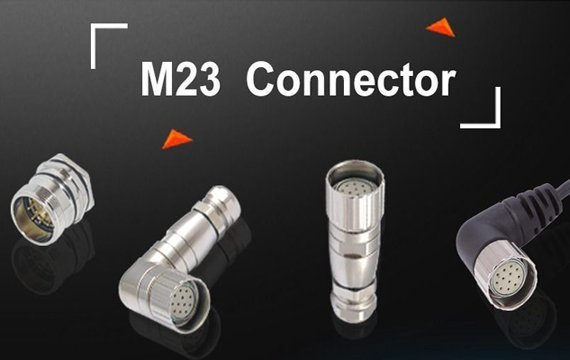

M23 Connector Product Features

Our M23 connectors are packed with outstanding features that guarantee optimum performance. This includes:

Resistant to liquids, including oil, emulsion, and lubricant properties

Perfect for the worst environmental applications like petroleum, steel, automobile manufacturing, chemical industries, and electric power, among others

Bending resistance, resistant to frequent torsion and welding sparks

The cable offers better electrical as well as mechanical performance, ensuring reliability and stability

The M23 shielded connector offers reliable anti-EMI performance

Is it important to choose the Right M23 Cable?

M23 cable application includes integrating different machines, which requires high reliability and long. span connections. It's therefore essential to ensure you choose the suitable custom M23 cable.

Any mistake here can lead to your complete project failure. Both the M23 cable and connector must have the ability to withstand different environments, including harsh settings.

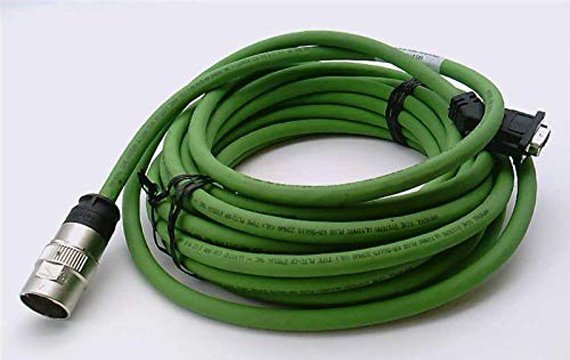

M23 Cable Assembly: The Ultimate Guide

M23 cable assembly provides a very robust and compact connection. The M23 wiring harness is responsible for the transfer of power, data, and signals within different devices

The user has lots of options to select from the many M23 inserts available, including different wire lengths. All of this aims at providing the needed application flexibility.

What are the benefits of M23 cable?

The cable is equipped with a standard lP67 protection M23 cable assembly is full of reliable EMC characteristics to the cable's solid over-molding features, it's tamper-proof Available hybrids for siqnal and power

Available with either the PVC or PUR sheathing

Features a robust wire harness for protection against vibration and The cable is compatible with other conventional mating faces

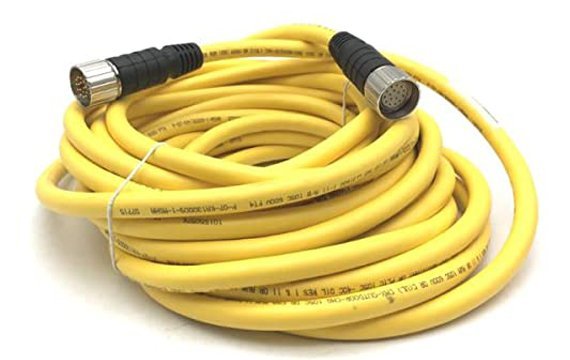

Evershine-M23 Cable Assembly

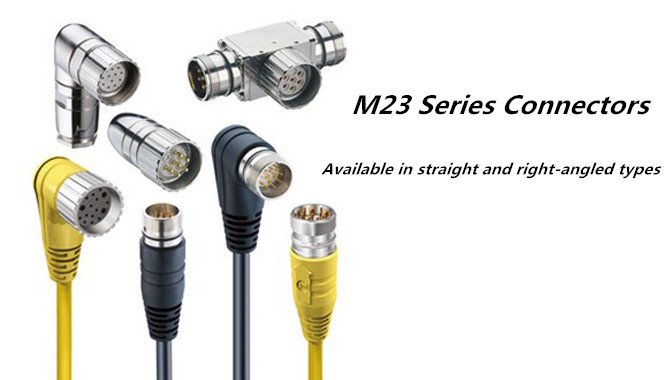

Evershine manufactures over-molded cable assemblies with male and female M23 connectors from 6-pole to 19-pole in straight and right-angled versions. The M23 connectors are a UL-certified and are designed to withstand the positive vibration of motor-driven and moving assemblies. in addition, they meet every IP 67/69k level protection requirement

The cable jackets are available in lTC-ER Pvc, shielded PUR, and TPE sheathing, and they come in many standard shelf lengths.

Reach out today and enjoy Evershine M23 cable assembly customization services at an affordable price

Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.

The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.

Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.

What is Cable Harness?

Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.

These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space.  Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.

What is the Wire Harness Assembly Process?

1. Wire Preparation. Cut the wires to the required lengths based on the design specifications.

2. .Crimping or Soldering.

3. Terminal Assembly.

4. Harness Routing and Bundling.

5. Testing and Inspection.

6. Protective Covering

7. .Labeling and Marking.

8. Final Quality Check and Packaging.

Where are wiring harnesses used?

Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
