M12 Cable Assembly
Depending on your custom requirements, we use several cable terminations to make Ml2 cable assemblies.

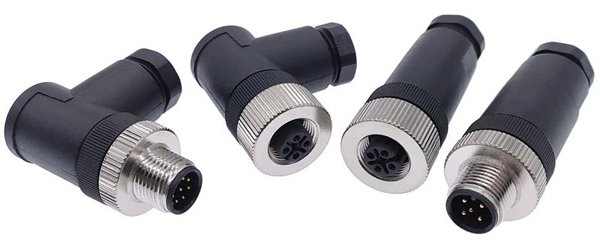

For non-molded M12 cables, we use:
Waterproof OEM cable connector products.
Bulkhead-mounted connectors, sealed panels to lP grade.
For overmolded connector Ml2 cables, we use:
High-quality matched materials to ensure an internal seal between the cable molding, cable jacket, and connector. Waterproofing Ml2 connector
- Evershine
- Fujian, China
- 7-15days
- The monthly production capacity is 10 million
- Information
M12 Cable Assembly
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly
M12 Cable Assembly supplier

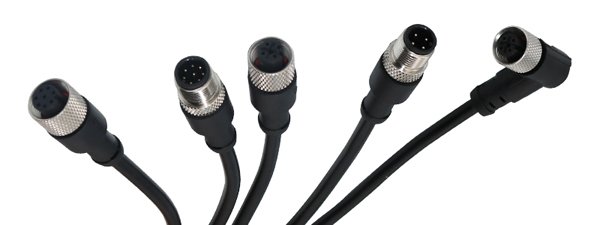

ECOCABLES plays an important role in manufacturing quality M12 cable assemblies. We design unique M12 cable assembly solutions according to customer requirements.
Available in 3, 4, 5, 8, 12-pin connectors, etc.
Available in I and L type, male and female Ml2 circular connectors
PVC and PUR cable jackets are available
IP67 or IP68 rated: dust and waterproof
The M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial Ethernet, and Fieldbus. They are available with 2, 3, 4, 5, 6, 8, and 12pins.

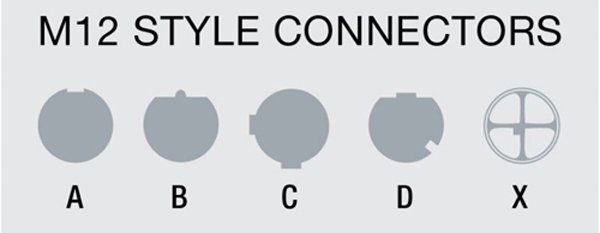

What is the difference between M12 connector coding?
A-coded is mainly used for most standard devices such as sensors, actuators, and motors. Usually between 2 and 12 pins.
B-coded is primarily used for network cables connected by Fieldbus, including systems operated using Profibus. lt usually has 3 to 5 pins.
C-coded primarily for AC sensors and actuators, there are also double keyways for added security. lt has 3 to 6 pins.
D-coded is commonly used for network cables in Ethernet and ProfiNet systems. transfers data up to 100 Mb and usually provides 3 to 5 pins. S-code is for AC power applications. T-code is for DC power applications. X-code can transfer large amounts of data up to 10Gb at high speed, and it always has 8 pins.
Check the assembly connectors for any sign of corrosion or damage. Have a look at the insulating wire wrap for crack signs or warped signs. These are some of the changes that will affect the performance of your washing machine wiring harness.
What is the classification of Ml2 power cables?

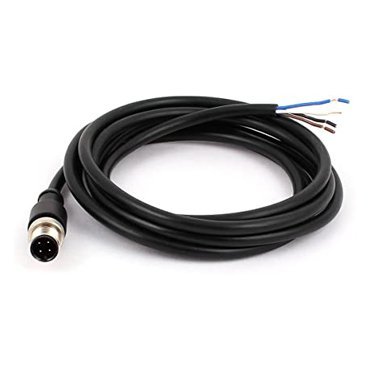

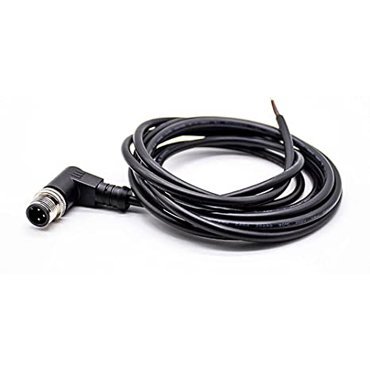

M12 single-ended cable straight female M12 single-ended cable straight male M12 single-ended cable right-angle male M12 single-ended cable right-angle female

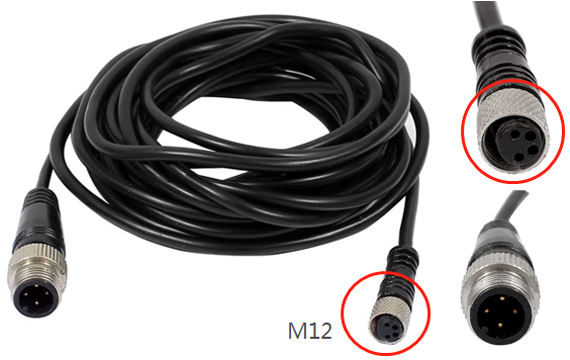

M12 double-ended cable, straight male to female
M12 double-ended cable, straight female to female
M12 double-ended cable, straight male to male
M12 double-ended cable right-angle male to female M12 double-ended cable right-angle to straight
M12 to USB cable

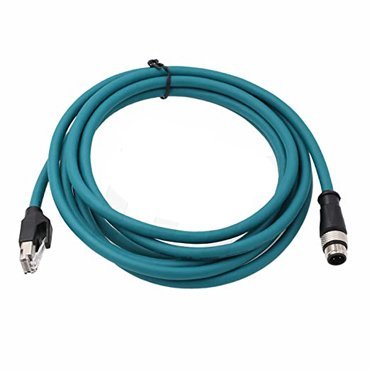

M12 to Rj45 cable
M12 to D-sub cable
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
