Computer Ribbon Cable
The computer ribbon cables are used in computers with much wiring.
The ribbon cables comprise different colors to make conductor identification easy. Computer ribbon cables can be used in limited spaces due to their nature (flatness). Ribbon cables can be mass-terminated with ease.
- Evershine
- Fujian, China
- 7-15days
- Information
Computer Ribbon Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly

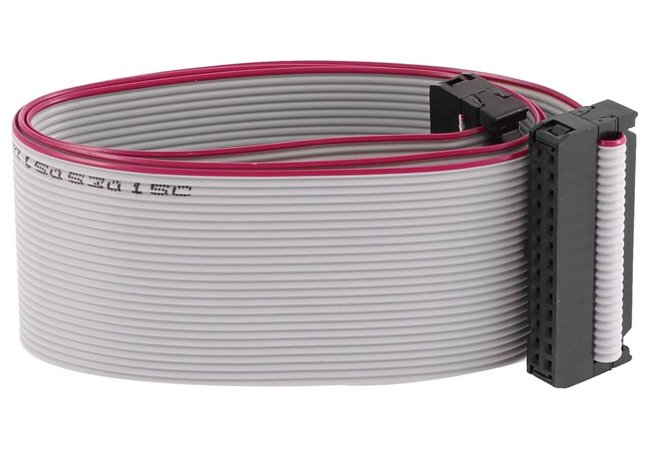

Computer Ribbon Cable
A computer wire assembly refers to a broad, flat cable comprising lots of conducting wires that are placed side by side. The cable acquired its ribbon cable name due to its resemblance to a ribbon.
A computer ribbon cable can also be called a “Flatcable" or "multi-planar cable." Ribbon cables are commonly used in gadgets with insufficient space to accommodate other types of cables, for example, in computers.
One computer flat ribbon cable can be differentiated from another by understanding their different applications and constructions. However, all computer ribbon cables are made to be thin and have limited flexibility.
1.27MM,2MM, 2.54MM pitch connector
LOW MOQ 50pcs accepted
Sample available
Size: 50 x3.2 cm/20"x1.3"(L*W); Product Name: Flat Ribbon CablePackage Content:1x Flat Ribbon Cable; Main Material: PlasticNet Weight: 32g; Color: Gray, Black

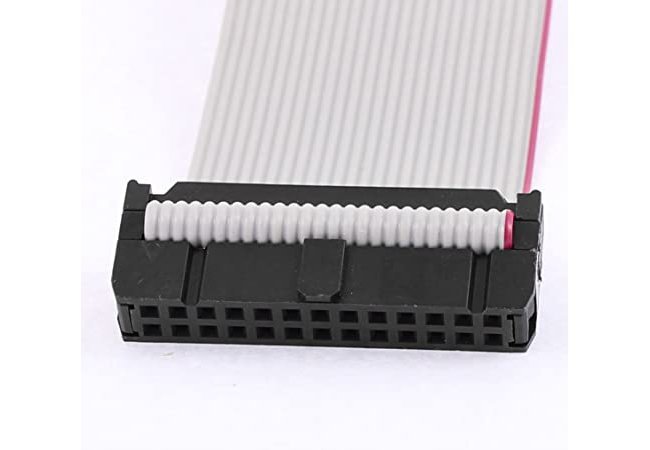

Connector Type:26 Pin Female to Female lDC Connector; Pitch: 2.54mmWithstand Voltage: 300V; Temperature: 105℃
What are the types of computer ribbon cables?

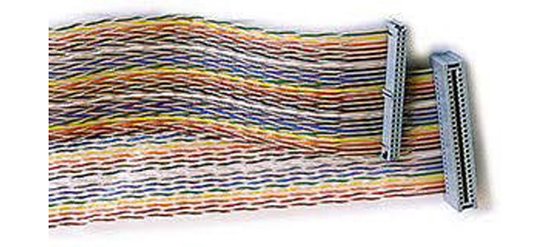

Twisted flat ribbon cable
This computer flat ribbon cable comes with pairs of twisted conductors packed together. To ensure the perfect connection between the connectors and PCB headers the cables have to undergo a twisting process while using the lDC ribbon cable skill.

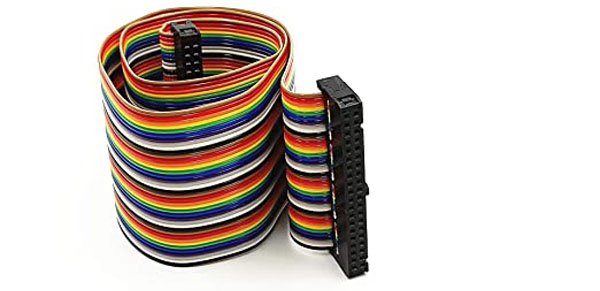

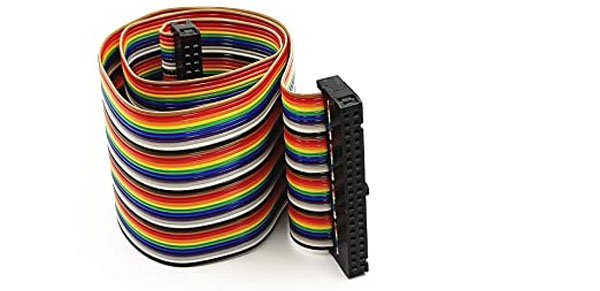

Rainbow ribbon cable
Flat ribbon cables exist in different types. Some are similar while others are unique in their own way. This includes the rainbow cable with stands out in its own ways. The cable comes with a rainbow structur,e including the colors. The colors help in making sure the wires are easily identified when it comes to connections. This computer ribbon cable type also features end splits for individual termination.

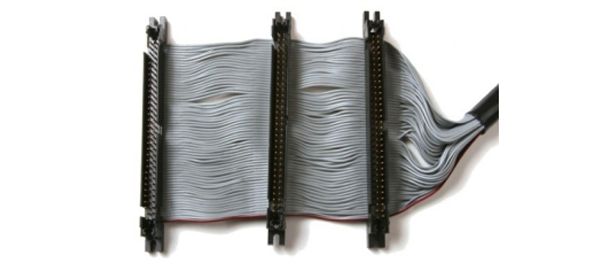

Standard ribbon cable
The standard ribbon wire harness design is quite unique. The design allows for easy mass termination. Owing to this, the cable has a broader application. The computer cable also stands out owing to its grey color.
Round to flat ribbon cable
This cable end is normally bundled and features a round shape construction. The cable is split for application use. This type of construction is significant for tight spaces. The cable's end is significant in providing the necessary cable work.
Bonded ribbon cable
This bonded ribbon wire harness features three types;
The single hook-up wire
The coaxial wire harness
The multi-conductor wire harness
The ribbon cable's bonding property aids in the organization of the construction and reduces the flexibility of the ribbon wire. This construction leads to a mass termination of several cabling products.
What are the applications of computer ribbon cables?
A computer ribbon cable is used in various computer applications within its internal peripherals. Over the years, the computer ribbon wire applications have continuously changed. In the early days, the BBC Micro, as well as the Apple 2 series, was used in older computer models.
However, nowadays, ribbon cables are prevalent inside CD drives, wire harnesses, hard drives, and floppy drives. Also, computer flat ribbon cables in computers and laptops, and internal wiring. They help to transmit data and communication.
What are the advantages of computer ribbon cables?
The computer ribbon cables are used in computers with much wiring.
The ribbon cables comprise different colors to make conductor identification easy. Computer ribbon cables can be used in limited spaces due to their nature (flatness). Ribbon cables can be mass-terminated with ease.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
