50 Pin Flat Ribbon Cable
Cable's flexibility- A 50-pin lDC ribbon cable is easy to bend or fold. This characteristic allows the cable to be utilized in areas with high flexing applications.
The 50-pin ribbon cable's nature allows it to be used in limited spaces. Unlike other types of cables, for example, cylindrical cables, there is no need for extra insulation or harnesses. Therefore, the cable has a reduced physical volume and isn't bulky.
The cable allows an easy connection to a connector. The cables are organized to allow fast and easy installation of a connector. The counting of the pins starts from the edge with a red stripe.
The 50-pin lDC ribbon cable is designed to work in a variety of environmental conditions. The cable's insulation can withstand high temperatures (-40 °C- 105 °C).
Also, the cable is resistant to abrasion, moisture, acids, oil, and chemicals.
- Evershine
- Fujian, China
- 7-15days
- Information
50 Pin Flat Ribbon Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly

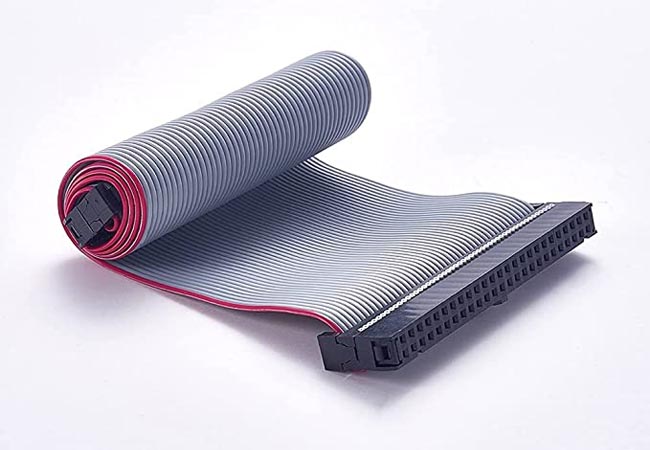

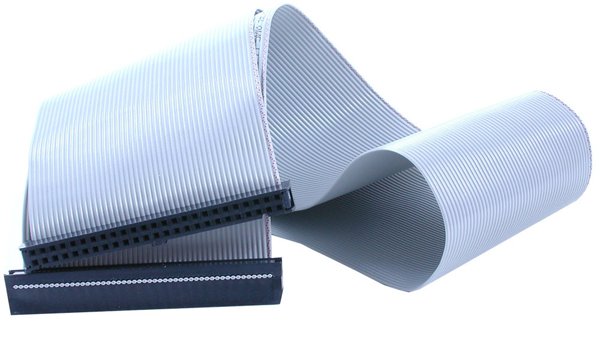

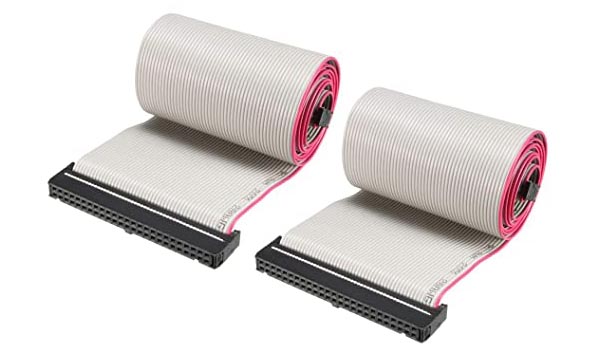

The lDC connector flat ribbon cable is a ribbon cable with a 50-pin lDC connector
A 50-pin ribbon cable is efficient in its applications. Its flat nature ensures that it can be connected to devices with limited spaces and guarantees sufficient performance. Most 50-pin ribbon cables are used in medical devices, computers, hard drives, and DVD players.
1.27MM, 2MM,2.54MM pin connector
50 pin lDC connector
LOW MOQ 50pcs accepted
The prototype is available, lead time: 1-3 days

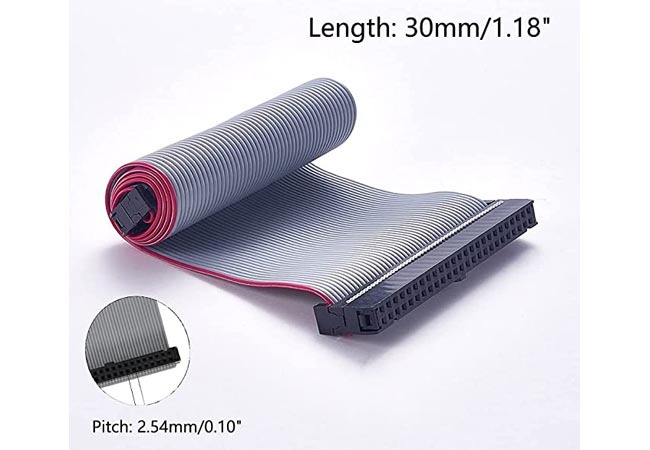

【Size】-Length: 30mm/118"; Pitch: 2.54mm/0.10"
【Function】-Securely connected to the pins, quick circuit experiment. In the terminals have not been damaged, they can be reused.
【Material】- Made of high-grade copper wire material for safe and durable use.
【Advantage】-Ribbon cable saves space and time on circuit interconnecting assemblies. Ribbon cable saves space and time on circuit interconnecting assemblies.
An Outline of 50 Pin IDC Connector Flat Ribbon Cable
You must have encountered some flat ribbon-like cables, right? Such cables are named after their resemblance, as they look like a piece of ribbon. They aren't too different from cylindrical cables, but they have unique applications due to their design.
Flat ribbon cables are commonly used in limited spaces where other types of cable can't perform efficiently.
Technological advancements have led to the development of smaller equipment that has led to the immense use of ribbon cables. A 50-pin ribbon cable is a significant example of a flat ribbon cable used in different fields, like medical, automotive, and robotic devices.
Specifications of a 50 Pin Flat Cable
A 50-pin lDC connector flat ribbon cable is characterized by unique features that help differentiate it from other types of flat cables. Some of the features to understand about 50-pin flat ribbon cables include;
The cable's end is connected to an lDC connector.
A 50-pin lDC connector flat ribbon cable has 50 pins- it's necessary to realize that these ribbon cables are easily differentiated by their number of pins.
The pin pitch of a 50-pin lDC cable is 1.27mm- The distance from one pin to the next one.
The cable can withstand high temperatures of up to 120℃, even though it has a temperature range of -40℃ to 105 °C.
The cable carries an electric current rated 1 Amp.
It has a voltage rating of 200V.
A 50-pin flat cable has a connector designed to accept 28-26AWGribbon wires.
The cables have a contact resistance of less than 20mOhm
The cable has a UL-2651 certification.
A 50-way ribbon is approximately 50cm long.
The cables are grey in color but with a red edge strip.
Benefits of an lDC 50 Pin Connector Flat Ribbon Cable
The 50-way ribbon cable has a design that allows it to provide its intended services in a satisfactory way. The benefits you will realize from using this type of cable include;
Cable's flexibility- A 50-pin lDC ribbon cable is easy to bend or fold. This characteristic allows the cable to be utilized in areas with high flexing applications.
The 50-pin ribbon cable's nature allows it to be used in limited spaces. Unlike other types of cables, for example, cylindrical cables, there is no need for extra insulation or harnesses. Therefore, the cable has a reduced physical volume and isn't bulky.
The cable allows an easy connection to a connector. The cables are organized to allow fast and easy installation of a connector. The counting of the pins starts from the edge with a red stripe.
The 50-pin lDC ribbon cable is designed to work in a variety of environmental conditions. The cable's insulation can withstand high temperatures (-40 °C- 105 °C).
Also, the cable is resistant to abrasion, moisture, acids, oil, and chemicals.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
