40 Pin Flat Ribbon Cable
40 pin lDC connector flat ribbon cable has various benefits, enabling them to be used in various fields. These benefits include;
Space efficiency- Reduces unnecessary use of tapes and insulations, thus reducing the cable's physical volume and bulkiness.
Flexibility- Can be easily folded. This allows the cable to be used in areas with continuous and high-flexing applications.
Can work even in extreme conditions- The cable has PVC insulation that protects it from extreme temperatures (-40 °C to 105℃). Also, the insulation is highly resistant to abrasion and corrosion from moisture and chemicals.
- Evershine
- Fujian, China
- 7-15days
- Information
40 Pin Flat Ribbon Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly

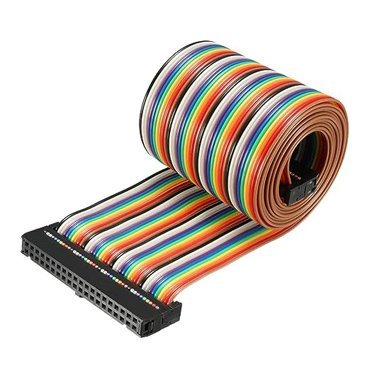

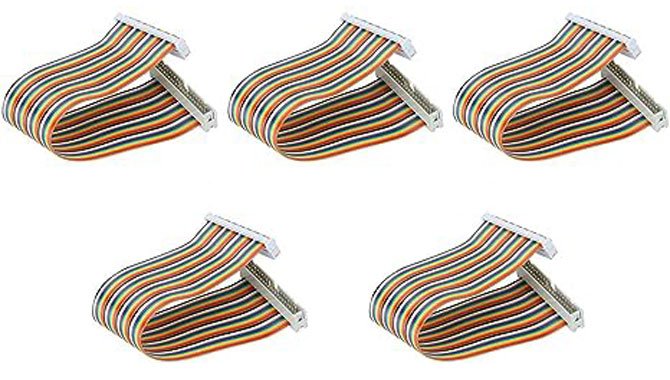

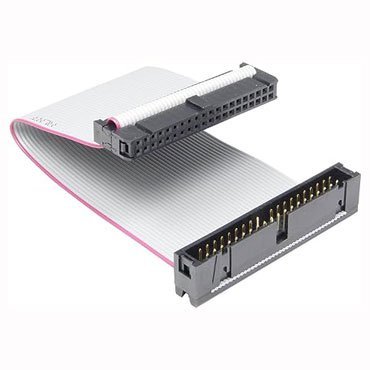

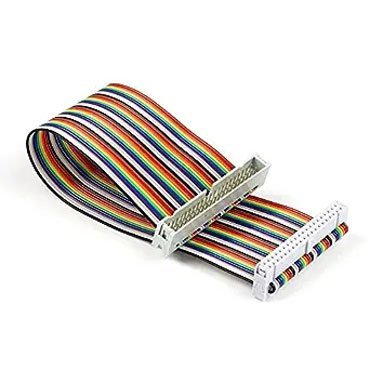

40-pin connector flat ribbon cable features 40 conducting wires that are combined in parallel. The flat ribbon cable is commonly referred to as multi. wire planar cables because the cables are designed by joining different insulated wires within a flat plane, forming a ribbon-shaped cable assembly.
Ribbon cables, therefore, feature many conducting wires that run parallel to each other within the same flat plane. The wires are important when it comes to internal peripherals applications within computers, like CD drives and hard drives, among others. The 40-pin ribbon cable has made it possible for different companies to easily do away with stiff and bulky cables and replace them with these unique, sleek, yet flexible ribbon cables

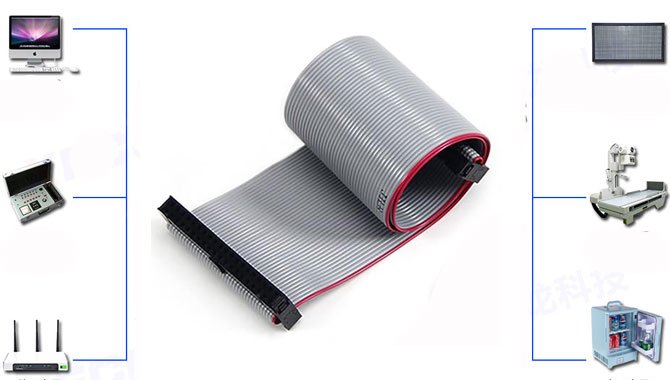

Applications of 40 Way Ribbon Cable
40 pin lDC connector flat ribbon cable has a design allowing applications in industrial, medical, and other technological fields. The cables are readily used in different electrical appliances.
Examples of the devices using the 40 pin ribbon cables are;
PCB board circuit connect
Hard drives and CD drives
Car LCD panels and LCD TV panels
DVD players
Computer cabling
Medical equipment
Advantages of 40 Pin Flat Ribbon Cable
40 pin lDC connector flat ribbon cable has various benefits, enabling them to be used in various fields. These benefits include;
Space efficiency- Reduces unnecessary use of tapes and insulations, thus reducing the cable's physical volume and bulkiness.
Flexibility- Can be easily folded. This allows the cable to be used in areas with continuous and high-flexing applications.
Can work even in extreme conditions- The cable has PVc insulation that protects it from extreme temperatures (-40 °C to 105℃). Also, the insulation is highly resistant to abrasion and corrosion from moisture and chemicals.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
