34 Pin Flat Ribbon Cable
The cable is highly flexible- it's easy to fold the cable. This benefit allows it to be applicable in robotics and automated medical diagnostic equipment.
Occupies small spaces- The nature of the 34-way ribbon cable enables it to occupy nearly half of the total space cylindrical cables can occupy.Therefore, applicable in limited spaces.
Weighs less- The cable doesn't have unnecessary fillers or insulation that make cables bulky and add to their volume.
A 34-pin ribbon cable efficiently transmits power- its copper conductor has a high conductivity level. This is due to its reduced level of resistance compared to other electrical conductors. The cables normally measure 30cm, making them highly efficient since resistance increases with the length of a conductor.
- Evershine
- Fujian, China
- 7-15days
- Information
2mm Pitch Ribbon Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer

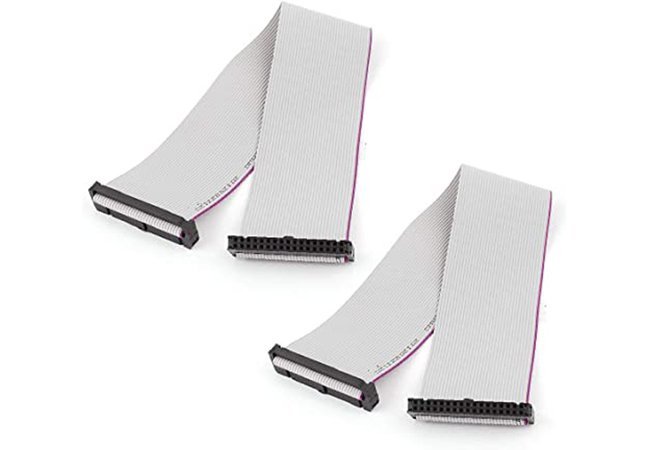

34 Pin Connector lDc Flat Ribbon Cable Overview
Might you be looking for a 34-pin flat ribbon cable? As the name suggests, the cable resembles a piece of ribbon; it's flat with cables connected adjacent to each other to form the ribbon-like structure. Once connected, your 34-pin ribbon cable isn't likely to fall off as it's innately held but still easy to install or remove.
However, you will realize a 34-way ribbon cable has small pins and an lDC connector, which comprise the unique features of the cable. The cable is highly flexible, allowing it to be used in highly sensitive and space-limited devices.
Custom Cable Assembly
The lDC connector flat ribbon cable is a ribbon cable with a 34 pin lDC connector.
The 34 pin lDC connector flat ribbon cable is used in various electrical gadgets we use at home, in industries, and in other fields.
You can find a 34-pin connector flat ribbon cable in printers, data or communication devices, hard drives,medical devices, industrial equipment, computer cables, gaming devices, and robotics, just to mention a few.
1.27MM, 2MM, 2.54MM pin connector
34 pin lDC connector
LOW MOQ 50pcs accepted
The prototype is available, lead time: 1-3 days

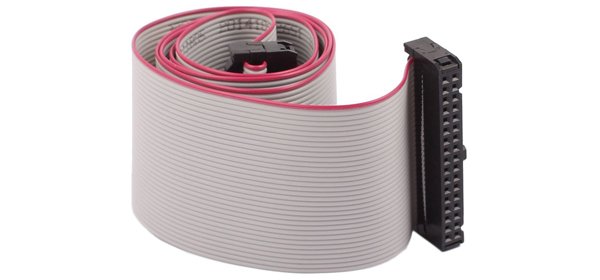

Product Name : Flat Cable;Model : FC34P;Connector Type : Female lDC Connectors;
Withstand Voltage: 300V;Temperature :105C; Pin Number :34
Pin Pitch :2.54mm;Wire Range:28AWG;Length :30cm/12"
Width : 43mm/1.7";Material : Plastic(Breite: 43 mm'; Material: Kunststoff
34 Pin Flat Ribbon Cable Features
The cable comes with;
Small pins on both sides
Ribbon cable
lDC connector
High-quality, resistant, flexible and durable plastic insulation
Specifications of 34 Pin lDc Connector Flat Ribbon Cable
The 34-pin lDc female connector flat ribbon cable has multiplecharacteristics defining its unique design and manufacture. Thesespecifications describe the cable applications. They include;
A 34-way ribbon cable is a UL2651 28AWG cable
The cable has a cable pitch of PH1.27mm. Other types of cable pitches linked with this type of cable are: 0.635mm and 1.0mm.
It has a copper wire conductor with a diameter of approximately 0.12m
The copper wire conductor has a conductivity resistance rating of less than 237 ohms and can withstand carrying a current with a voltage of 2KV
Most 34-pin ribbon cables have insulation with a conventional gray painting plus a red edge.
The cable has a black 34 pin and 1.27mm,2.0mm,2.54mm pitch lDC female to female connector
The PVC insulation on the cable is certified by the RoHS
34 Pin lDC Female Connector Flat Ribbon Cable Benefits
34 Pin lDC Female Connector Flat Ribbon Cable has many benefits.However, let's discuss a few crucial benefits you are likely to identify with ease.
The cable is highly flexible- it's easy to fold the cable. This benefit allows it to be applicable in robotics and automated medical diagnostic equipment.
Occupies small spaces- The nature of the 34-way ribbon cable enables it to occupy nearly half of the total space cylindrical cables can occupy.Therefore, applicable in limited spaces.
Weighs less- The cable doesn't have unnecessary fillers or insulation that make cables bulky and add to their volume.
A 34-pin ribbon cable efficiently transmits power- its copper conductor has a high conductivity level. This is due to its reduced level of resistance compared to other electrical conductors. The cables normally measure 30cm, making them highly efficient since resistance increases with the length of a conductor.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
