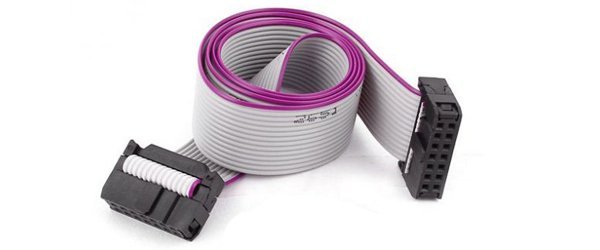

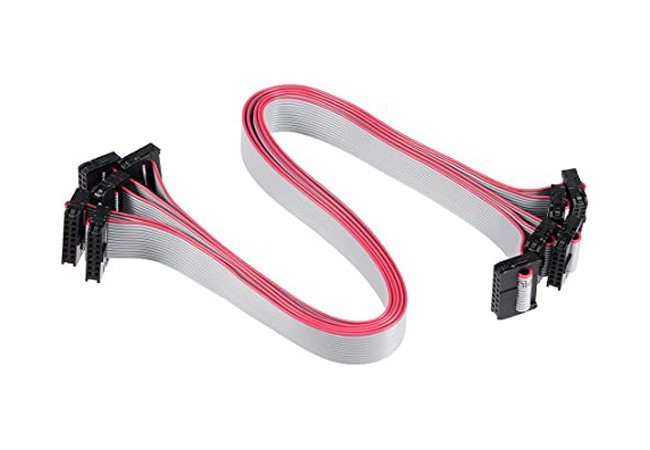

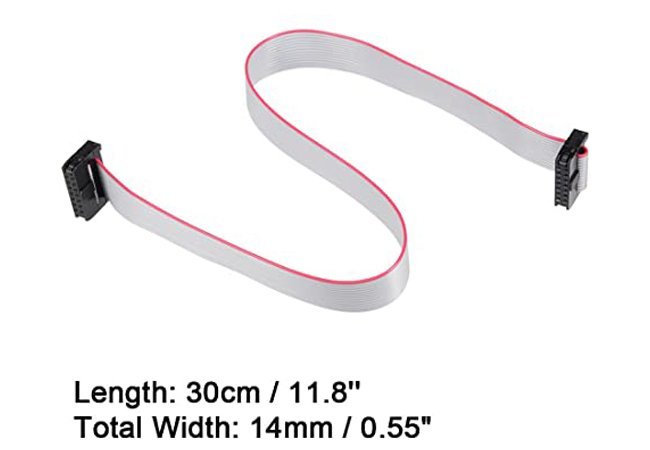

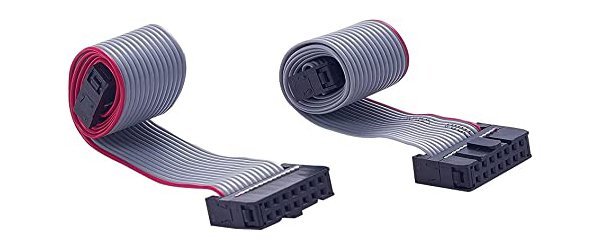

14 Pin Flat Ribbon Cable
The 14 Pin ribbon cable pitch is flat and tender, allowing the cable to bend and fit in most compartments and spaces. This flexibility provides more space utilization, thus reducing overheating charges
Also, the 14-pin lDC ribbon cable has contacts that allow for easy attachment and installation of equipment. Additionally, it's made from a soft, light, high-quality material that cannot easily break. Also, the attached pins provide soldering and easy seal, making crimp applications suitable and efficient.
- Evershine
- Xiamen
- 7-15days
- 100000pcs/month
- Information

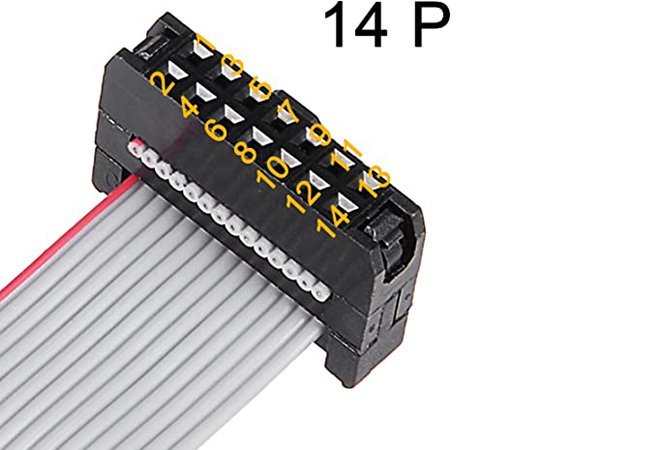

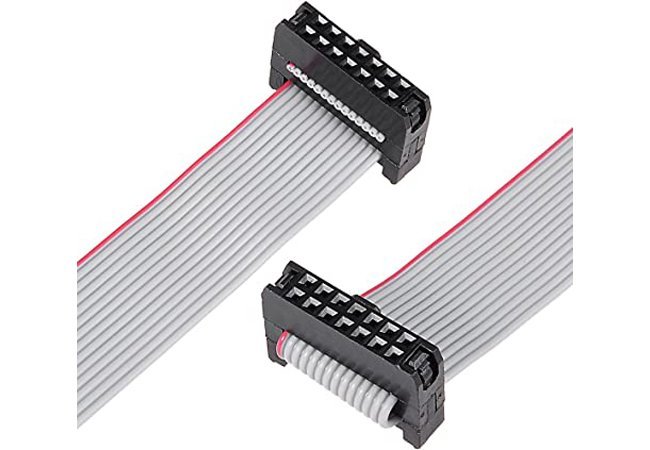

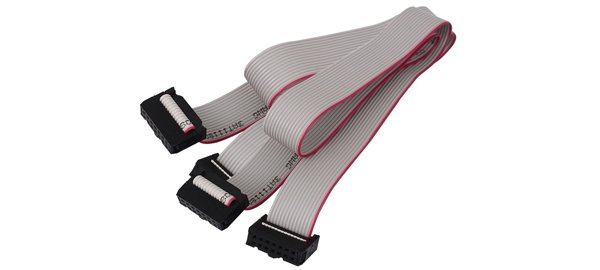

14 Pin Connector lDC Flat Ribbon Cable Overview
14 pin ribbon cable is a compilation of several wires connected to connectors known as Insulation displacement connectors (IDC).
Also, the cables are more similar to an actual ribbon product. The 14-pin ribbon cable design involves laying the wires in a straight but balanced position with the wires being parallel to each other.
Due to their flexibility and the ability to maintain their 14-pin ribbon cables, they are suitable for concentrated areas with limited spaces. However, the 14-pin flat cable is connected chiefly to an lDC connector cable and is mainly known as 14-pin lDC ribbon cable.
Features of a 14 Pin Ribbon Cable
The 14-pin ribbon wire harness features numerous slots for the pins and also comes with a bracket that's positioned at the cable's back. Its main function is to provide a reliable and safe attachment. Also, the Ulcable is widely used together with the 14 Pin Flat cable. In addition, it comes with plated contacts that are Gold in color and also contain spacing headers that are 0.1 inches.

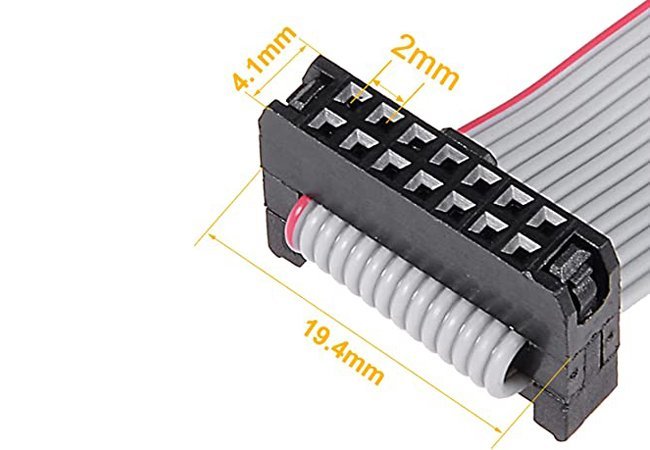

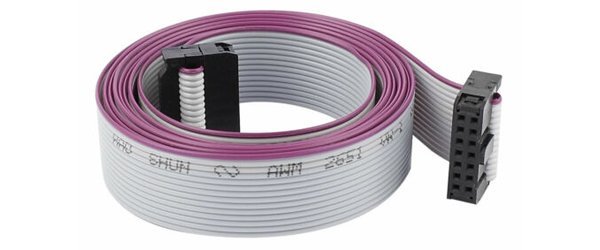

The 14-pin lDC ribbon cable is color-coded and always grey with red edges, has a connector pitch of 1.27mm- 2.54mm angle, and operates at an approximate temperature between -40 degrees Celsius to + 105degrees Celsius.
Furthermore, it has a conductor dimension of approximately 7/0.12MMand a resistance of 15 m(. Also, it has female connectors known as 14-pin lDC ribbon cables and is PVC-insulated.
Specification of a 14-pin Ribbon Cable
The 14-pin ribbon cable is specified in two values: the number of conductors and the spacing in the assembly. In the 14-pin lDCConnector cable, the spacing, also known as the pitch, varies in distance and is commonly available between 0.025 to 1 mm angles with different spacing between them.
However, the conductor's numbers within the 14-pin lDC connector cable highly correspond with the overall number of the connector's position that it can hold. Additionally, the connectors are standardized to a specific set of numbers and are restricted to particular situations.
Advantages of 14 Pin Ribbon cable
The 14 Pin ribbon cable pitch is flat and tender, allowing the cable to bend and fit in most compartments and spaces. This flexibility provides more space utilization, thus reducing overheating charges
Also, the 14-pin lDC ribbon cable has contacts that allow for easy attachment and installation of equipment. Additionally, it's made from a soft, light, high-quality material that cannot easily break. Also, the attached pins provide soldering and easy seal, making crimp applications suitable and efficient.
Application of the 14-pin flat cable
Generally, the 14-pin ribbon wire harness is mostly applied within computers, CD drives, and hard drives, or even in floppy drives. Also, 14-pin flat cable is mainly used in electrical appliances, gaming equipment, computer cabling, DVD players, LCD TV panels, LED displays, etc.
Companies can also use 14-Pin flat cable to connect moving equipment such as consumer products, electronic goods, printheads, test and measurement equipment, automation termination equipment, robotics, and medical equipment.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
