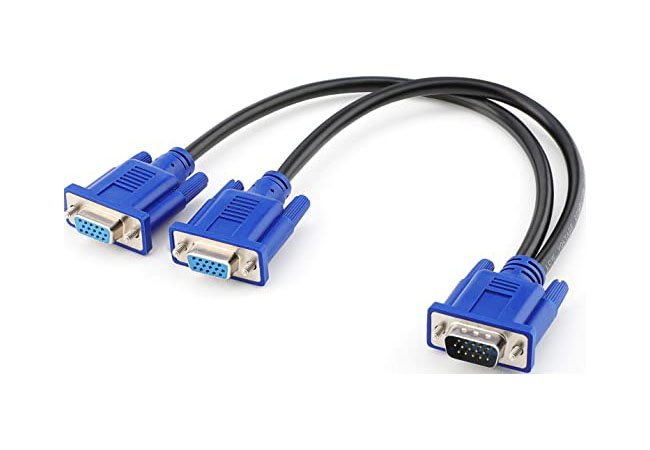

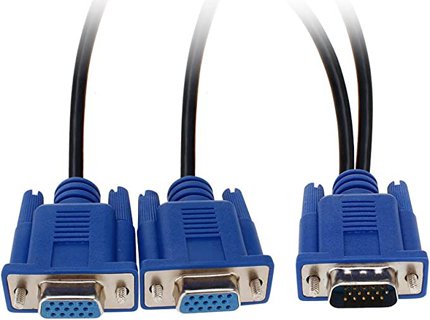

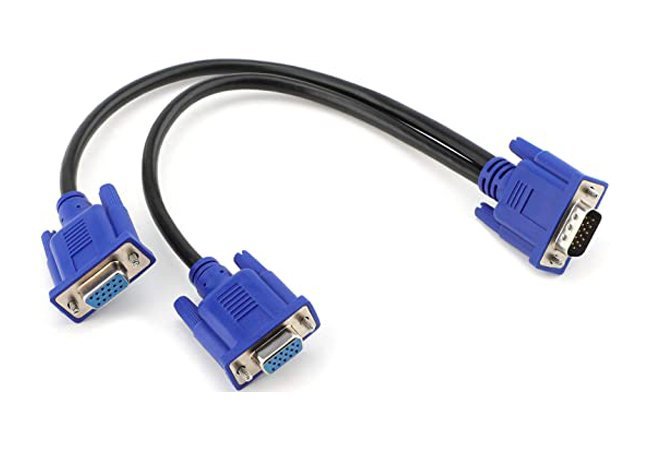

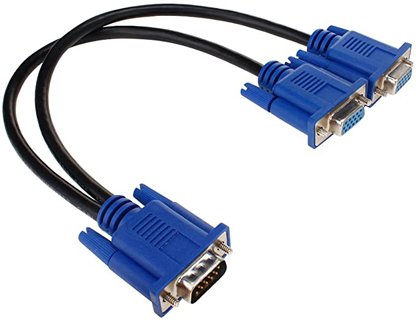

VGA cable assemblies are cables with VGA connectors.

VGA cable assemblies have been playing a significant role in developing VGA cables. Their applications have been realized in various fields, including industrial, production, warehousing, medical, household, etc.

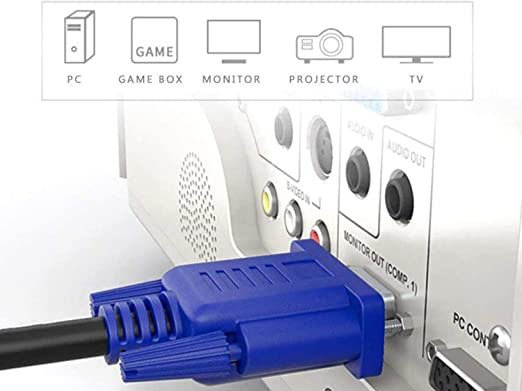

The VGA cable assemblies’ uses are on devices like：

VS

Projectors

Computer

laptops connection to display devices

Commercial settings

VGA Cable Assembly Overview

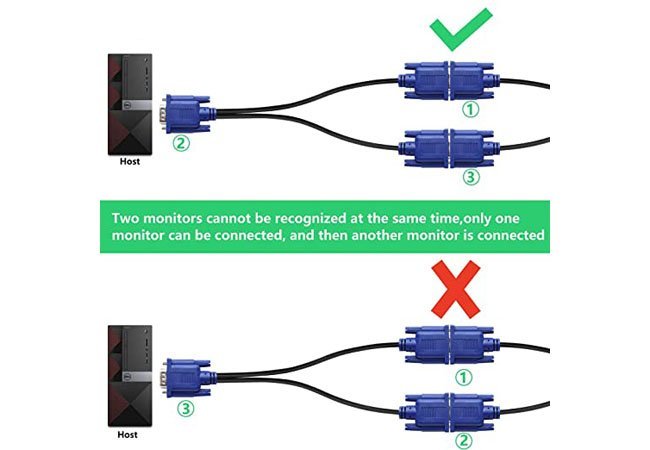

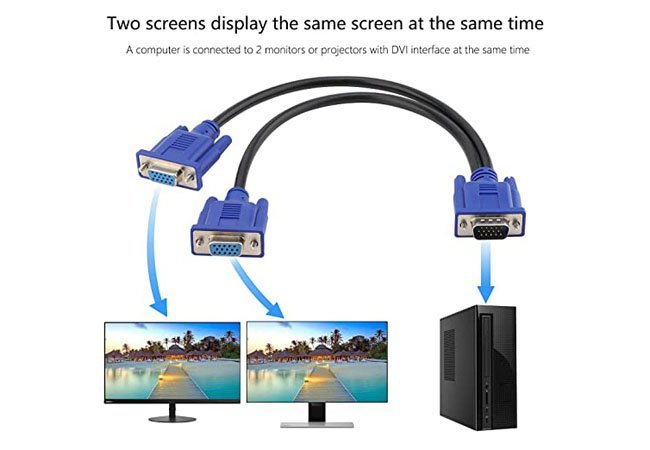

Anyone who owns a computer must have used a VGA cable. Basically, this is a cable we use to connect the computer to a display device, for example, a monitor or projector.

Components of a VGA cable assembly

A VGA cable assembly comprises two main components. They include;

Copper conductors insulated with PVC insulating material

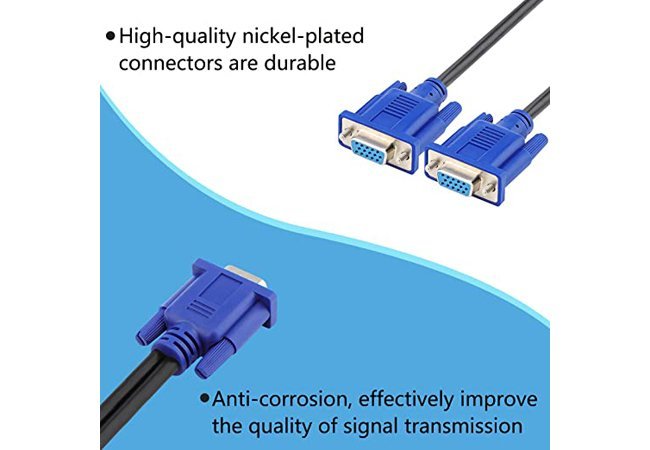

Connectors on both ends

When creating a VGA cable assembly, the manufacturer ensures the process is efficient in enhancing the performance of each component. The process must meet the UL-specified requirements.

Benefits of VGA cable assembly

VGA cable assembly has been happening for years. This means its benefits have been realized to support the durability and efficiency of the VGA cables. It’s rather difficult dealing with a cable with scattered or unorganized cables. This gave a good reason for developing the VGA cable assemblies.

Some of the VGA cable assembly benefits include;

Providing a 100% wire loading – The VGA cable assembly is designed to hold the cables tightly. This reduces any chances of wire-to-wire movement. Therefore, it reduced any possibilities of wear and tear.

Additional insulation – VGA cable assemblies offer the bound cables extra protection. This insulation is made of rubber or plastic material (PVC) that prevents the cable from any harm. PVC is a highly protective material with a high-temperature resistant ability and is not easily corroded by chemicals.

Provides easy cable maintenance– you don’t need to deal with one cable at a time. If the VGA cable is faulty, you are only required to replace it. This reduces the stress of repairing or replacing the worn-out cable.

Safe to use– Binding the cables in a single assembly ensures the cable works efficiently. No cable within the assembly is at risk of accidental disconnection as they are all bound together. Therefore, accidental electrical shorting issues are highly eliminated with VGA cable assembly.

Applications of VGA cable assemblies

VGA cable assemblies have been playing a significant role in developing VGA cables. Their applications have been realized in various fields, including industrial, production, warehousing, medical, household, etc.

The VGA cable assemblies’ uses are on devices like

The VGA cable assembly offers a durable and reliable sheath. This helps to increase the length of time the VGA cable can serve the end-user. Also, it makes it possible to be used in harsh environmental conditions.

Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.

The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.

Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.

What is Cable Harness?

Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.

These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space.  Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.

What is the Wire Harness Assembly Process?

1. Wire Preparation. Cut the wires to the required lengths based on the design specifications.

2. .Crimping or Soldering.

3. Terminal Assembly.

4. Harness Routing and Bundling.

5. Testing and Inspection.

6. Protective Covering

7. .Labeling and Marking.

8. Final Quality Check and Packaging.

Where are wiring harnesses used?

Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
