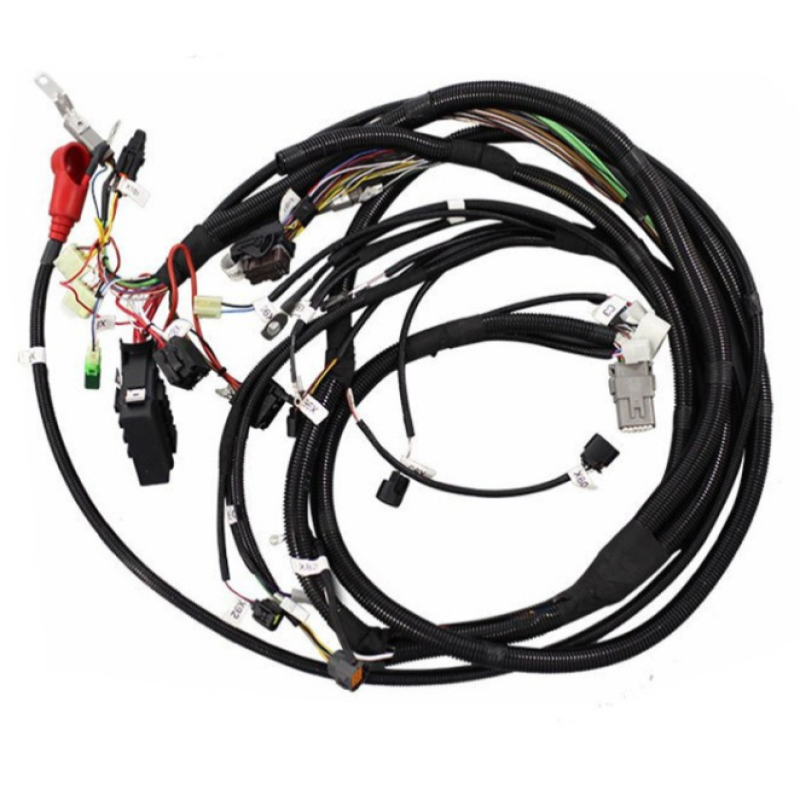

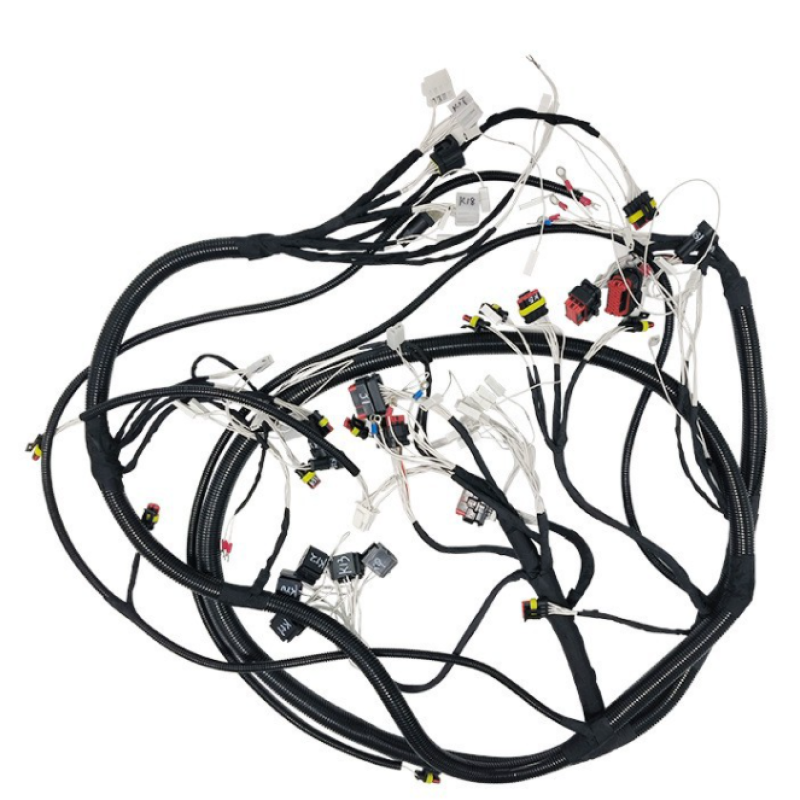

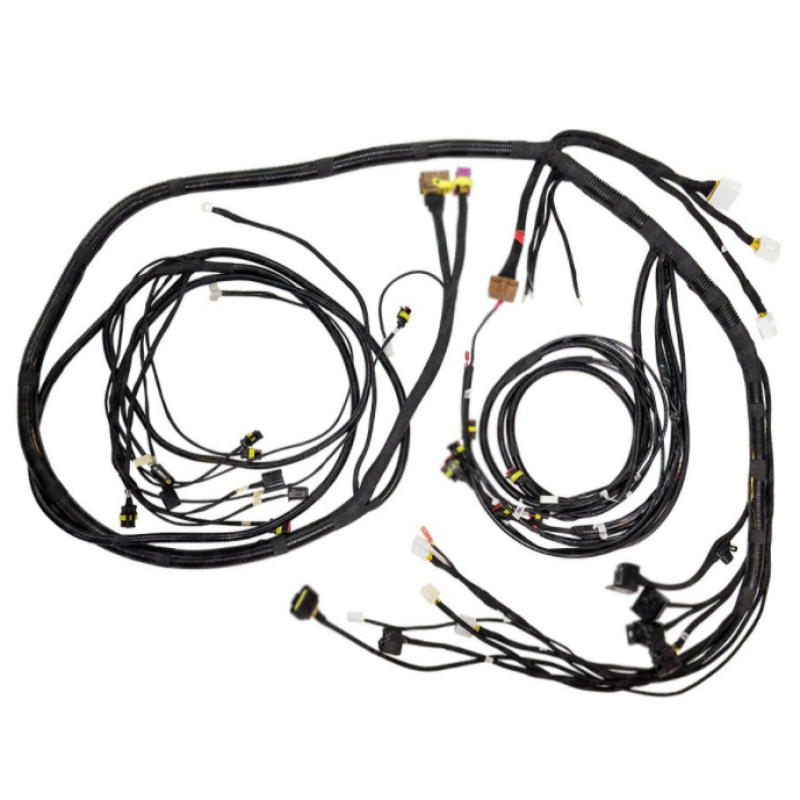

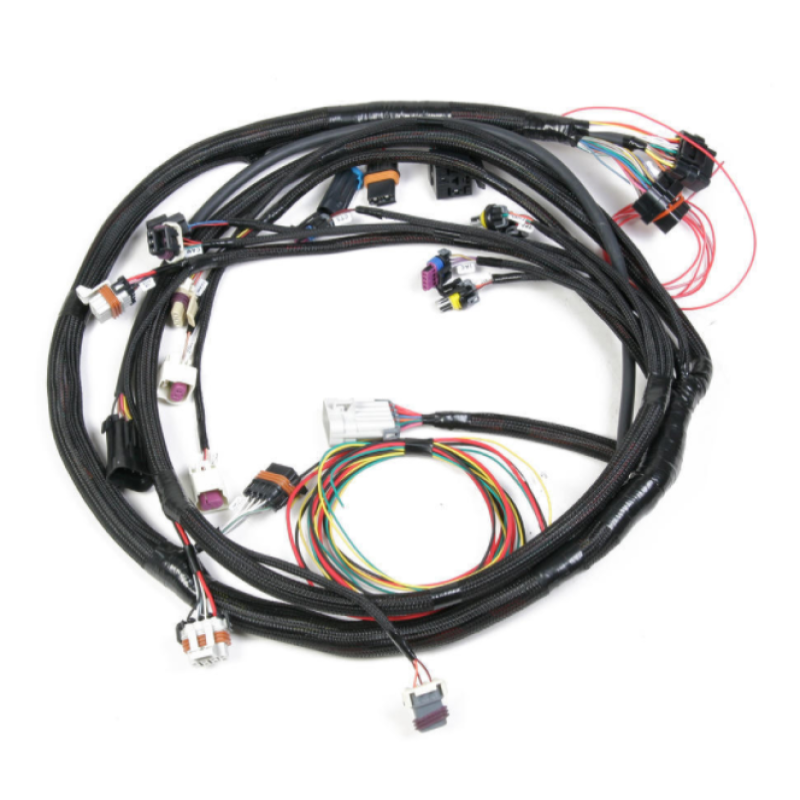

Professional Factory custom car engine wiring harness

What is wiring harness design?

A wire harness is a specially designed system that keeps numerous wires or cables organized. It is a systematic and integrated arrangement of cables within an insulating material.

The purpose of the wiring assembly is to transmit a signal or electrical power.

What is a harness design engineer?

Wiring harness design engineers and systems integrators serve a key role in facilitating the collaboration between electrical and mechanical teams as designing a strong wire harness requires a complete understanding of both the electrical and mechanical components of a design.

What are the three types of wiring harnesses?

High temperature resistant wiring harness. The high-temperature resistant wire harness is made of special high-temperature insulation materials and high-temperature resistant wires, which can work normally in high-temperature environments.

Waterproof wiring harness.

Oil resistant and corrosion-resistant wiring harness.

What size wire is used in a wiring harness?

Choose Correct Wire Gauges for Wire Harness

What gauge wire is used in a harness? Wire gauges in a wiring harness range from around 24 AWG (AWG) to 8 AWG. The smaller the number, the finer the gauge, and the larger the number, the thicker the gauge.

What happens if a wire gauge is too small?

Using a wire gauge that's too small for your needs can result in overheating. This happens because a smaller gauge wire has higher resistance, which converts electrical energy into heat. Overheating can damage the wire insulation and pose serious fire risks.

how to assemble cat6 cable？

Carefully strip the jacketing from the cable to expose 1" of the insulated wire conductors.

Untwist the pairs to within 1/8" of the jacket.

Insert prepared cable into plug.

Insert the plug into a crimp tool.

Test the cable using a cable tester to check for shorts, opens or miswires.

Do RCA cables go to input or output on an amp?

Your amplifier gets its input signals from the receiver's output typically via RCA cables. RCA cables come in stereo pairs, in various lengths. When running new speaker wires from your amplifier's output to the speakers, any size wire from 18- to 14-gauge will work fine.

what are safety harness cables made from acrobat？

The core item of a fall arrest system, the harness is usually fabricated from rope, braided wire cable, or synthetic webbing.

Safety harnesses are typically made from either polyester or nylon webbing with alloy steel adjustment buckles. However, at Safety Harness Direct, we offer a wide selection of safety harnesses made out of a range of different materials, including specialist harnesses for working in unsafe conditions.

what is a battery cable harness？

A battery cable assembly is a set of wires and terminals that connect a battery to an electrical system. The typical application is in vehicles, which include both electric and their internal combustion engine (ICE) counterparts, as well as energy storage wiring.
