Fused Battery Cable

Fused Battery  Cable

OEM ODM wiring Harness Factory

Customized Male to Female Wire Harness

Terminal wire 1.25 air docking Cable Harness

Terminal Wire Harness Kit manufacturer

Custom Cable Assembly

Fused battery cables provide a link between batteries and fuse block or starters. This cable plays a vital role in the car’s operating system when it comes to transmitting power to the car’s key points. A vehicle that lacks the appropriate fuse battery cable assembly will have a difficult time operating or even fail to work completely.

Any failure with the battery cable will result in power flow discontinuity making the other components of the car automatically fail. When selecting fused battery cables, consider double-checking the gauge and cable length.

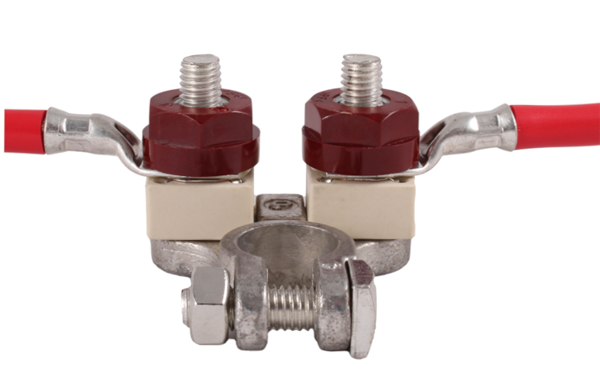

The cable comes with a compact fuse holder

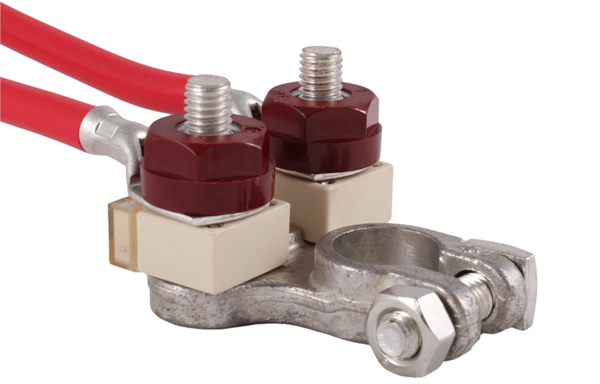

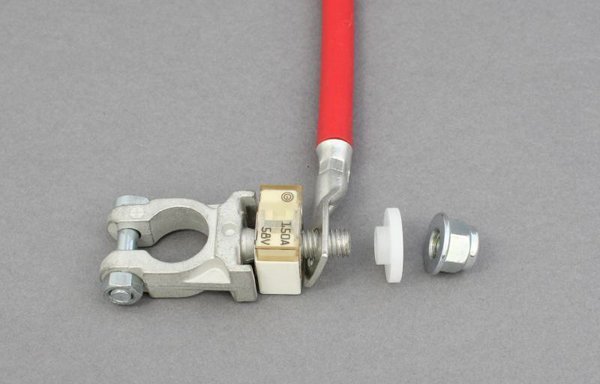

A fused battery cable has a fuse located at the power source

Protects the vehicle appliances from receiving power overload

What are fused battery cables?

The fused battery cable design features two heavy-gauge wires. The positive wire comes with a red casing wire in a red casing – its purpose is to ensure proper connection to the vehicle battery and its computer system. The negative battery cable on the other hand is wrapped within a black casing. Its also referred to as the ground cable or ground strap.

The wire connects the battery to the chassis for grounding. Such a connection creates a closed loop allowing power from the battery to flow continuously throughout the vehicle’s essential components.

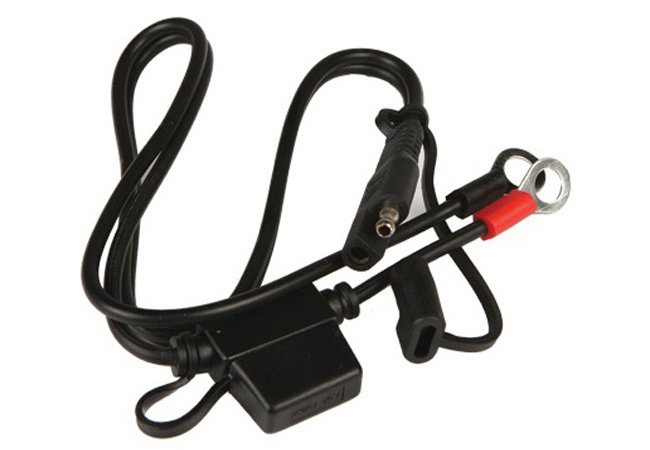

Ring Terminal Harness Accessory for use with multiple batteries.

Black quick disconnect

For 12 volt models only

Contains a 7.5 amp fuse

Length : 2 ft

What are the applications of fused battery cables？

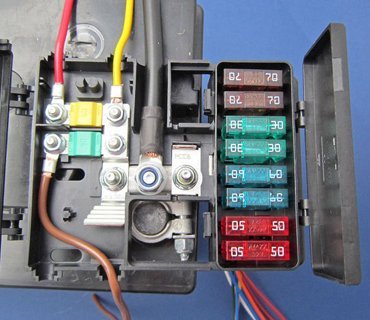

Technological advancement allows an in-line fuse to be applied inside battery cables. The in-line fuses are integrated into two cables connected by a fuse and fuse box or fuse holder. Connecting a fused battery cable helps to protect the circuit of the components being supplied with power. The fuse holder within the in-line fuse battery remains watertight. It ensures electrical devices connected to the vehicle battery are safe from overcharging with the current.

The filament within the fuse melts and breaks the circuit whenever the current exceeds the normally required charge. When the engine starts, the starter motors draw the highest current of all vehicle components. So, having an in-line fuse battery helps to protect the alternator as it is designed to break the circuit whenever there is an overload.

What are the advantages of using fused battery cables？

Fused battery cables are common cables in automobile electrical operating systems. They play a vital role in different applications, including transmitting power from the battery to other electrical appliances. Fused battery cables come in different lengths and depend on the type of vehicle and gauges. When replacing the cable, it is vital to check and confirm these two aspects to get the right ones for a specific type of vehicle.

Some of the common fused battery cables advantages are:

The cable comes with a compact fuse holder- No need to have an additional power distribution module or fuse holder.

A fused battery cable has a fuse located at the power source- This reduces installation time when replacing and repairing it.

Protects the vehicle appliances from receiving power overload.

Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.

The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.

Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.

What is Cable Harness?

Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.

These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space.  Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.

What is the Wire Harness Assembly Process?

1. Wire Preparation. Cut the wires to the required lengths based on the design specifications.

2. .Crimping or Soldering.

3. Terminal Assembly.

4. Harness Routing and Bundling.

5. Testing and Inspection.

6. Protective Covering

7. .Labeling and Marking.

8. Final Quality Check and Packaging.

Where are wiring harnesses used?

Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
