EC3 Cable

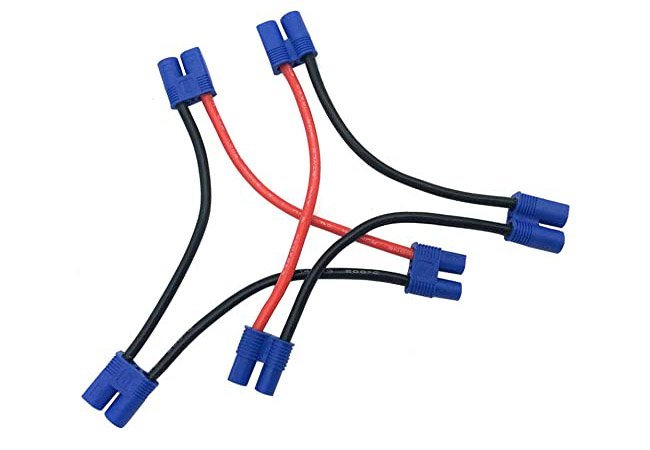

This adapter is perfect for wiring two batteries with EC3 connectors together in series.
Combines two battery packs together in series with EC3,EC3 series adapter increases capacity for doubles runtime.
Wire Length: 10cm / 4inch；Wire Gauge: 14AWG Heatproof Soft Silicone Cable.

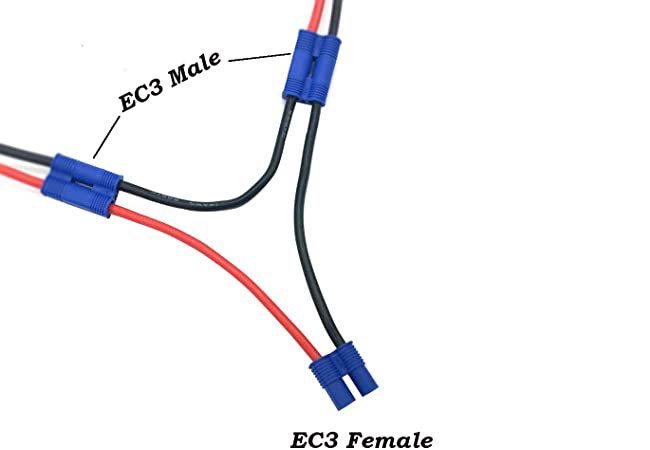

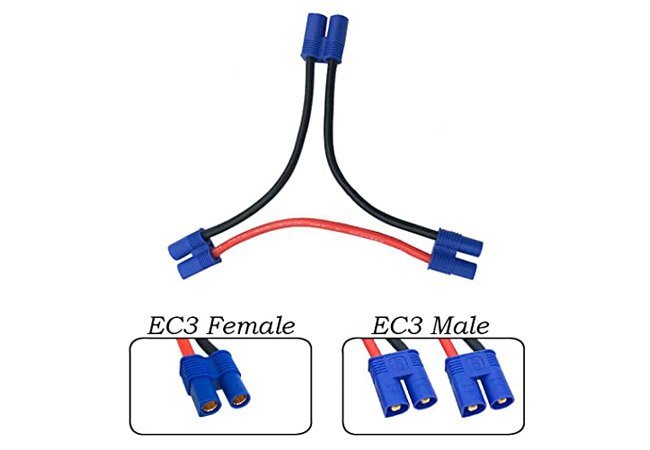

Connectors: 1x female ec3 and 2x male ec3 connections.
- Information
EC3 Cable
OEM ODM wiring Harness Factory
Customized Male to Female Wire Harness
Terminal wire 1.25 air docking Cable Harness
Terminal Wire Harness Kit manufacturer
Custom Cable Assembly
EC3 cables are the cables using the EC3 connector.
EC3 charger cable is a common type of cable you will need to have for your car. It ensures your car’s performance is improved. With its unique features, you will realize that the cable will serve you for an extended period.
However, it’s necessary not to mishandle it. In case you are planning to purchase an EC3 cable, consider this information as it will be of much help. Also, contact us for more details of the same.

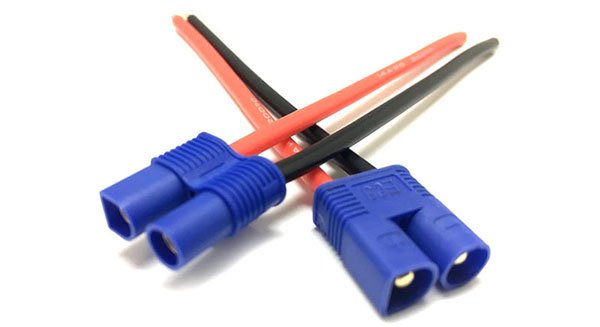

EC3 connector
Silicone wire
Suitable for your RC model wiring needs.
Flame retardant, heat resistant, high-temperature resistance.
An Outline of EC3 Cable
EC3 cables are connected to EC3 connectors. The name EC3 derives from the E-flite connector, a 3mm connector. The EC3 cable has male and female connectors on either side used to connect to other connectors and electrical power devices. It must be connected to a connector compatible with its pins to work efficiently.
Normally, an EC3 charger cable is applicable in vehicles with batteries with large capacities and ensures efficient power transmission. However, compared to EC5, EC3 is used with vehicles with lesser power as their design is different from that of EC5 cables and connectors.
What is an EC3 Charger Cable
An EC3 cable’s applications are linked with battery power. The cable is designed with a copper conductor. Copper is a preferred conducting material in these cables as it has a significant conductivity level of 5.96×10 σ (S/m) at 20 °C and a low resistivity level of 1.68×10 ρ (Ω•m) at 20 °C. This makes the use of copper in EC3 cables to be a great choice.
The cable is highly flexible, so you can easily fold and position it in any given shape of preference.
Features of an EC3 Battery Cable
An EC3 charger cable is uniquely designed to serve its purpose. Its unique features help differentiate them from other types like EC5, an advanced version of the EC3. This means that whenever you wish to purchase an EC3 cable, look out for specific features or ask the salesperson to assist. However, the common features you need to know include;
An EC3 Plug cable is commonly used in smaller cars since they don’t require much power.
These cables are connected to EC3 connectors, 25mm and 17mm long and wide, respectively.
An EC3 cable has a length of about 30cm.
The cable can transmit power of approximately 90Amps. However, many EC3 cables are designed to carry electric power of about 50 to 60Amps.
Benefits of an EC3 Charging Cables
An EC3 plug cable has several applications in the automotive industry. The cable’s flexibility, size, plus other features allow it to perform significantly efficiently. More advantages of these cables include;
The cable is made of a conductor and insulation material that maintains its flexibility. They can be folded with ease without breaking or getting damaged.
An EC3 cable is small in size, making it possible for the cables to be used in limited spaces.
The cables are efficient in carrying electric current- The copper conductor ensures the cable transmits high voltage current without resistance.
EC3 cables are insulated with PVC insulation- PVC material allows the cables to work even in extreme temperature conditions. Also, it’s resistant to chemicals, oil, grease, moisture, and abrasion.
Company Information:
Xiamen Evershine Electronic Technology Co., Ltd. was founded in 2015, is a professional engaged in wire and cable, wire harness products research and development, production, sales as one of the enterprises, wire and cable widely used in communications, home appliances, power automation, aerospace vehicles, ships, automobiles and so on.
The factory has passed ISO9001 quality management system certification, and the products have international certification. Quality is our culture, to survive by quality, to develop by integrity. The most perfect quality, the most favorable price, the most intimate service.
Now we mainly offer you the wires products list as various electronic wire harness wiring design, custom vehicle wiring harness, home appliance wire harness, customized industrial wire harness, computer wire harness, over-molded cable connectors, terminal block connectors, power cable types, Products have been widely used in office equipment, communications, household appliances, industrial automation, automobile, etc.
What is Cable Harness?
Cable assemblies are groups of cables which are arranged into a single unit for a particular purpose. Cable assemblies are also referred to as cable harnesses or wiring looms.
These cables are grouped together in precisely the required length and orientation in order to make installation easier and quicker. They often include different cable constructions, as well as varying sizes, colours and lengths depending on the application. The assemblies may be compiled with a sleeve applied overall, or taped or bound with cable ties to help group the cables together, protecting them and making them more compact to save space. Depending on the application the assembly may be fitted with various terminations, including plug or socket arrangements.
What is the Wire Harness Assembly Process?
Wire Preparation. Cut the wires to the required lengths based on the design specifications.
.Crimping or Soldering.
Terminal Assembly.
Harness Routing and Bundling.
Testing and Inspection.
Protective Covering
.Labeling and Marking.
Final Quality Check and Packaging.
Where are wiring harnesses used?
Wire harnesses are everywhere — under the hood of every car and truck on the road, and in every plane, jet, and rocket in the sky. Wire harnesses are also referred to as cable harnesses or cable assemblies. These terms all describe a systematic set of cables or wires bundled to form an integrated unit.
