Comprehensive Guide to Custom Wiring Harness
2026-04-23 10:03You use custom wiring harnesses to connect and protect electrical systems in many fields. These harnesses keep wires neat, make things safer, and help machines work better. Xiamen Evershine Electronic Technology Co., Ltd. shows you why a good harness matters.
The world market was USD 356 million in 2024 and will reach USD 460 million by 2031.
This growth happens because of new technology in cars, factories, and hospitals.
| Industry | Application Description |
|---|---|
| Aerospace & Defense | Military harnesses are made for high places and strong shocks. |
| Medical Technology | Special wiring is used for MRI machines, ventilators, and surgery robots. |
| Industrial Automation | Strong cables are used in robot arms for many uses. |
| Electric Vehicles (EV) | High-voltage harnesses are used for battery and power systems. |
You get helpful tips in this Comprehensive Guide to Custom Wiring Harness.
Key Takeaways
Custom wiring harnesses link electrical systems and keep them safe. They help make things work better and safer.
Begin with a careful meeting to learn what your project needs. This helps make sure the harness fits your needs well.
Pick strong materials for your harness to make it last longer. Good materials help it work well in different places.
Use a simple design and build process to stop errors. This makes sure your harness works the right way.
Use strict checks to test and look at your harness. This makes sure it is safe and works every time.
1. Consultation & Requirements
Before making a custom wiring harness, you must collect the right details. This step helps you not make mistakes. It also makes sure your harness fits your project. Xiamen Evershine Electronic Technology Co., Ltd. helps you as a trusted partner.
Initial Assessment
First, you look at what your project needs.
You check the place where the harness will go.
You make a list of all devices and machines to connect.
You think about how much power each part will need.
You pick which Professional Terminal Block Wire Harness or Electrical Connector Wire Harness is best.
Tip: The first meeting with your wiring harness provider matters a lot. You talk about your ideas and what you need. The designer listens and asks questions. This helps the designer know your project better. If you do this step well, your harness will be safe and work right.
Project Specifications
You write down every detail for your harness.
You add the wire length, number of connectors, and insulation type.
You choose if you want a Customized Electrical Cable Harness or Electrical Terminal Wiring Harness assembly.
You decide your budget and when you need it done.
Xiamen Evershine Electronic Technology Co., Ltd. helps you at every step. You get expert help and clear answers. You can trust their Wiring Harness Solutions to fit your needs.
2. Material Selection
Choosing Wires & Components
You have to pick the best wires and parts for your custom harness. This is important because it helps your system work well and last longer. The Comprehensive Guide to Custom Wiring Harness says each part does something special:
Wires move electricity.
Insulation keeps wires safe from harm.
Fuses stop too much current.
Relays switch power on or off.
Connectors link wires to devices.
You need to check some key things when picking materials. The table below shows what to look for:
| Dimension | Criteria | Importance (1-5) | Examples |
|---|---|---|---|
| Gauge Size | Fits the amount of electricity needed | 5 | 16 AWG for lights |
| Insulation | Handles heat and tough places | 4 | PVC, XLPE for high heat |
| Wire Count | Matches the number of circuits | 4 | 12 wires for sensors |
| Connector | Easy to put together and fix | 5 | DEUTSCH connectors |
| Length | Fits the space and path | 3 | Custom lengths |
| Environment | Resists water, chemicals, or heat | 4 | Marine harnesses |

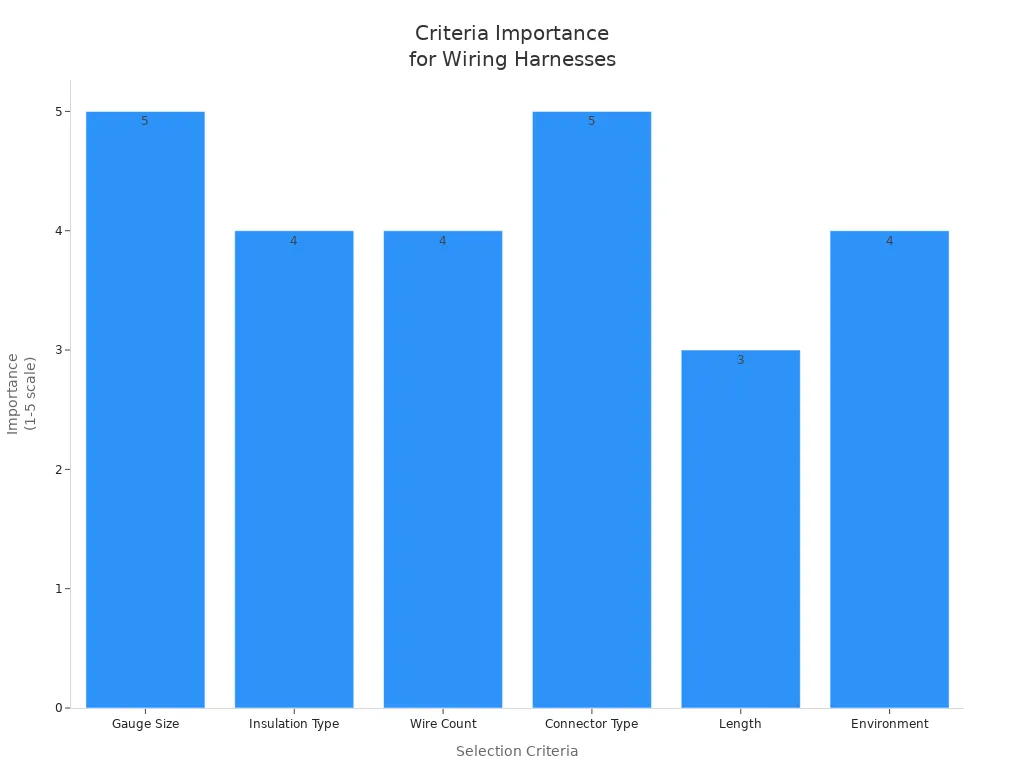

You can see how important each thing is in this chart:
If you want a strong and easy connection, try a Professional Terminal Block Wire Harness.
Quality Considerations
You want your harness to last for years. The Comprehensive Guide to Custom Wiring Harness says good materials help your harness fight heat, chemicals, and shaking. Copper wires are best for moving electricity. PVC and TPE insulation keep wires safe from water and rough use.
Think about where you will use the harness. If your project has high heat, water, or lots of movement, pick materials that can handle these things. Custom harnesses let you choose the right parts for each job.
You should check if your harness follows industry rules. These rules make sure your harness is safe and works right:
| Standard | Description |
|---|---|
| IPC/WHMA-A-620 | Sets rules for good crimping and soldering |
| ISO 9001:2015 | Focuses on quality management |
| IATF 16949:2016 | Used in cars for defect prevention |
| UL | Checks safety and performance |
| RoHS | Limits harmful substances |
By following these steps in the Comprehensive Guide to Custom Wiring Harness, you make sure your project is safe, strong, and ready for anything.
3. Design & Engineering
Layout Planning
You begin by making a plan for the circuits. The Comprehensive Guide to Custom Wiring Harness helps you turn your ideas into a real plan. You must think about where each wire goes. You also decide how wires connect to devices. Drawings and diagrams help you see if everything fits and works.
Here are the main steps for designing a custom wiring harness:
Decide what your harness needs to do.
Pick the right parts and list them early.
Draw a schematic and block diagram to show connections.
Plan the 3D path so wires bend safely.
Make a full drawing with details for building.
Build a prototype to check fit and function.
Write a test plan for safety and performance.
Create work instructions for assembly.
Tell suppliers what you need and how long it takes.
Start with a pilot run and make improvements.
You use software tools to help with layout planning. E3.series keeps schematics, 3D models, and documents updated together. Arcadia Harness helps balance splices and make detailed diagrams. These tools make your job easier and help you avoid mistakes.
| Software Tool | Description |
|---|---|
| E3.series | Keeps schematics, 3D models, and documents updated to prevent errors. |
| Arcadia Harness | Works with schematic tools, balances splices, and makes detailed diagrams. |
Tip: Try an Electrical Connector Wire Harness for easy and reliable connections.
Technical Specifications
You must set clear technical specifications for your harness. The Comprehensive Guide to Custom Wiring Harness says you need to pick wire length, diameter, and connector types. You look at the equipment and where it will be used. Think about temperature and humidity. You may need special features like bending or extra protection.
Drawings show where each wire goes and how it connects. Check if your harness needs color coding or special shielding. Make sure your design meets important standards, especially for medical devices.
| Standard | Description |
|---|---|
| IEC 60601 Series | Safety and performance rules for medical electrical equipment. |
| UL 60601-1 | Rules for electrical safety of medical devices in the United States. |
| ISO 13485 | Standards for quality management in the medical device industry. |
Follow these steps in the Comprehensive Guide to Custom Wiring Harness. This makes sure your harness is safe, strong, and ready for your project.
4. Assembly & Installation
Assembly Steps
You need to follow clear steps when you build a wiring harness. This helps you avoid mistakes and makes sure your harness works well. Here is a common process you can use:
Review your design files and wiring diagrams.
Choose the right wires and connectors for your job.
Cut each wire to the correct length and label it.
Strip the ends of the wires to get them ready.
Crimp terminals onto the stripped wires for strong connections.
Place the wires on a harness board to match your design.
Insert the wires into connectors, making sure they lock in place.
Test the harness to check if it works and passes inspection.
You may use tools like automated crimpers or soldering machines for better results. Sometimes, you need to use a pinboard to hold wires in place. You can add cable sleeves or wraps for extra strength. If you want a harness that fits your needs, try a Customized Electrical Cable Harness.
Tip: Training helps you do a better job. Programs like the Wire Harness Assembly for Operators teach you how to assemble, inspect, and test harnesses. You can earn certificates that show you have the right skills.
Installation Best Practices
You must install your harness the right way to keep your system safe and reliable. Here are some best practices:
Use good insulation and connectors to stop short circuits.
Follow safety rules like IEC 60601-1 and ISO 13485.
Protect wires from sharp edges and moving parts.
Use grommets, clips, and strain reliefs to hold wires in place.
Check that all connections are tight and secure.
Proper installation keeps your harness safe from shaking and wear. This helps your system last longer and work better. The Comprehensive Guide to Custom Wiring Harness recommends you always follow these steps for the best results.
5. Quality Control & Delivery
Testing & Inspection
You want your wiring harness to work right every time. Quality control means you test and check the harness carefully. You look for problems at each step. You use your eyes to find defects. You do electrical tests to see if wires carry power. You also do mechanical tests to check if the harness is strong. You run tests for heat, cold, and water to see if the harness can survive.
Here is a table that shows the main testing levels:
| Testing Level | Description |
|---|---|
| Level 1 | Minimum Viable Testing: 100% visual inspection, 100% continuity testing, First article inspection |
| Level 2 | Standard Quality: All Level 1 tests, Pull testing, Cross-section analysis, In-process inspections |
| Level 3 | High Reliability: All Level 2 tests, Hipot testing, Contact resistance testing, Environmental testing |
| Level 4 | Aerospace/Medical Grade: All Level 3 tests, 100% pull testing, Full documentation package, Statistical process control, Functional testing |
You might see problems like bad labels, wrong cables, or unclear steps. You fix these by using formboards and checking parts early. You pick cables that can handle hard jobs. You can trust Wiring Harness Solutions from Xiamen Evershine Electronic Technology Co., Ltd. They use strong quality checks and follow top rules.
Packaging & Delivery
You want your harness to arrive safe and ready to use. You protect each Electrical Terminal Wiring Harness assembly with special boxes, bubble wrap, and plastic bags. You add packs to keep out water. You use hard boxes so nothing gets crushed.
Here are some ways you keep harnesses safe:
Put harnesses in special boxes so they do not move.
Wrap them with soft stuff to stop scratches.
Use plastic bags and packs to block water.
Pick hard boxes for extra safety.
You want your harness fast and on time. Xiamen Evershine Electronic Technology Co., Ltd. ships quickly and has a strong supply chain. You get samples in 2–4 weeks. You get test units in 3–5 weeks. You get big orders in 8–12 weeks. Their team helps you before and after you get your order. You get answers to your questions and help with your project.
Note: Xiamen Evershine Electronic Technology Co., Ltd. is known for good quality, fast shipping, and great support. You can count on their Wiring Harness Solutions for every project.
You can make your project safer and work better by using this guide. Custom harnesses have many good points compared to regular ones:
| Benefit | Description |
|---|---|
| Tailored Precision | Fits your project just right. |
| Increased Efficiency | Fewer errors and quicker to put in. |
| Better Performance | Good materials for hard work. |
| Cost Effectiveness | Saves money in the long run. |
| Space Optimization | Works well in small spaces. |
| Assured Safety | Tested carefully so you feel safe. |
Custom harnesses, like Wiring Harness Solutions, fit what you need.
You save time and make fewer mistakes with a Professional Terminal Block Wire Harness.
If you want expert help, talk to Xiamen Evershine Electronic Technology Co., Ltd. Their team helps you from the start to the end.
